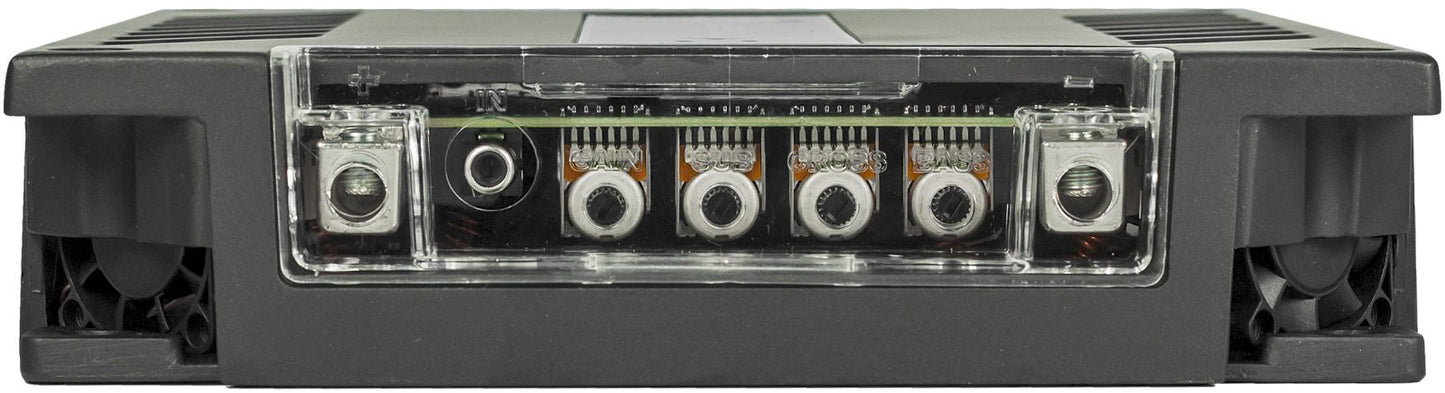

Banda Viking 5002 Digital Amplifier Module - 1 channel - 2 Ohms

Banda Viking 5002 Digital Amplifier Module - 1 channel - 2 Ohms

$449.00 USD
$449.00 USD
Promoção Esgotado
Tributo incluído. Frete calculado no checkout.
VIKING 5002

 The VIKING Line is intended for those who are really looking for a powerful sound.  In this line we have some models that are highlighted in major championships worldwide.
 It also features a 100% aluminum chassis that offers better heat dissipation, resulting in low battery consumption and optimum performance.
 The Viking 5000 offers 5000 Wrms on 1 channel at 2 Ohms.  Used in medium and large projects as it is a high performance amplifier, it has a frequency response of (5Hz - 5kHz) and can be used to play several types of speakers, such as Subwoofer, Woofers and Mid-Bass.
 Technical specifications

 Maximum Power 14.4v @ 2 Ohms

 5500 WRMS

 Maximum Power 14.4v @ 4 Ohms

 3600 WRMS

 Maximum Power 12.6v @ 2 Ohms

 5000 WRMS

 Maximum Power 12.6v @ 4 Ohms

 3000 WRMS

 Efficiency @ 4 Ohms

 83%

 Efficiency @ 2 Ohms

 78%

 Input Voltage

 9 - 15V

 Input Impedance

 100K Ohms

 THD + N

 <1%

 Input Sensitivity

 50mV - 2V

 Signal to Noise Ratio

 93dB

 Frequency Response (OFF switch)

 5 to 5kHz (-3dBs)

 Frequency Response

 20 to 5kHz (-3dBs)

 Bass Boost @ 45Hz

 Variable 0 to + 18dBs

 HPF (Subsonic)

 20 to 80Hz @ 12dB / octave Linkwitz-Riley

 LPF (Crossover)

 80 to 5kHz @ 12dB / octave Linkwitz-Riley

 Recommended fuse

 250 A

 Resting Current

 3.5 A

 Maximum Current (sinusoidal signal)

 500 A

 Maximum Current (musical signal)

 270 A

 Power cables (min. Recommended)

 50mm / 0 AWG

 Output cables (min. Recommended)

 2 x 6mm / 2 x 3 AWG

 Weight (Kg)

 5.4

 Height (mm)

 60

 Width (mm)

 264

 Depth (mm)

 308i
