USINA 200a smart charger with voltmeter
USINA 200a smart charger with voltmeter
Não foi possível carregar a disponibilidade de retirada.
THIS POWER SUPPLY WAS DESIGNED MAINLY TO SUPPORT THE CAR'S SOUND SYSTEM LEAVING THE BATTERIES WITH THE CHARGE INTACT, EVEN IF IT STAYS PLAYING FOR HOURS.
SPARK IS ONE OF THE LEADING AUTOMOTIVE POWER SUPPLY MANUFACTURERS, AS IT PRODUCES EXCELLENT QUALITY EQUIPMENT WITH GREAT COMPONENTS.
LEADERSHIP AND QUALITY AVAILABLE TO YOUR NEEDS IN AUTOMOTIVE SOUND.

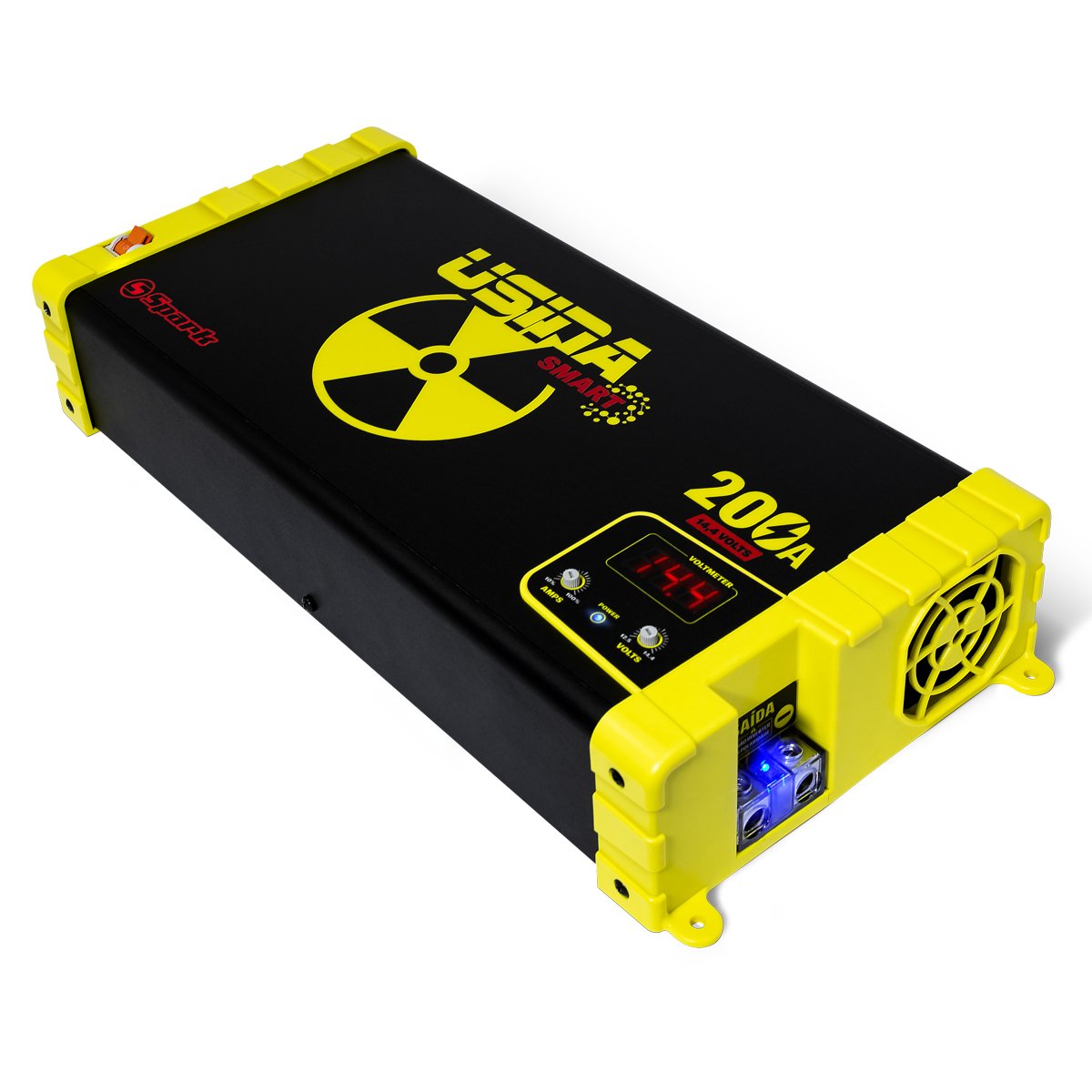

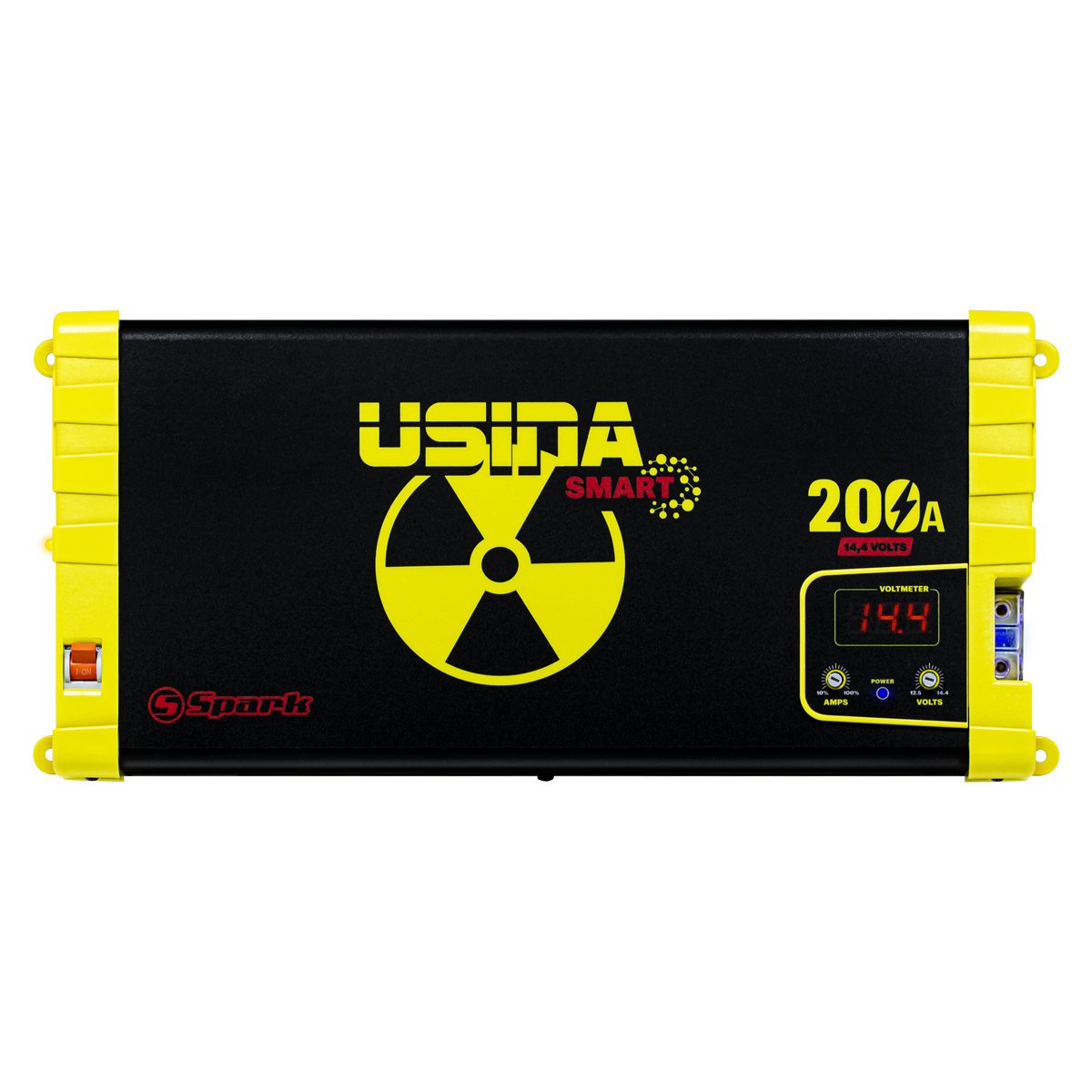

AN EXCELLENT QUALITY PRODUCT, THE AUTOMOTIVE SOURCE DIGITAL SPARK USINA 200 AMPERES MONOVOLT IS ANOTHER MEMBER OF THE USINA FAMILY.
WITH ITS NOMINAL OUTPUT AT 200 AMPS, THE OUTPUT VOLTAGE IS 12.5 TO 14.4 VOLTS (ADJUSTABLE) AND INPUT VOLTAGE IS 250 VAC (MONOVOLT). IN ADDITION, THIS POWER SUPPLY ALREADY COMES WITH AN INTEGRATED VOLTMETER, FOR GREATER CONTROL OF THE ELECTRIC CURRENT.
SPARK IS ONE OF THE LEADING AUTOMOTIVE POWER SUPPLY MANUFACTURERS, AS IT PRODUCES EXCELLENT QUALITY EQUIPMENT WITH GREAT COMPONENTS.
LEADERSHIP AND QUALITY AVAILABLE TO YOUR NEEDS IN AUTOMOTIVE SOUND.
ADDITIONAL INFORMATION
| PRODUCT SKU CODE | USI200A |
|---|---|
| AVAILABILITY | IMMEDIATE DISPATCH |
| RECOMMENDED GAUGE (MM²) | 50MM² |
| MAXIMUM CONSUMPTION (A) | 21A |
| OUTPUT CURRENT | 200A |
| FLOATING MODE | YES |
| RECOMMENDED GENERATOR (KVA) | UNINFORMED |
| VOLTAGE ADJUSTMENT | YES |
| TOTAL INPUT POWER (WATTS) | 2980 |
| OUTPUT POWER (WATTS) | 2500 |
| PERFORMANCE % | 85% |
| ADJUSTABLE OUTPUT CURRENT | YES |
| INPUT VOLTAGE | 220V |
| OUTPUT VOLTAGE | 12.5V TO 14.4V |
| APPROXIMATE PRODUCT WEIGHT (KG) | 3,670 |
SPECIFICATIONS
INPUT VOLTAGE: MONOVOLT
AC 220VAC: 170 @ 250VAC 220VAC
CONSUMPTION: 21A (MAXIMUM)
OUTPUT VOLTAGE: 12.5V @ 14.4VDC (+-1%)
OUTPUT CURRENT: 200A @ 12.5VDC (+-5%)*
OUTPUT POWER: 2500 WATTS (MAXIMUM)**
EFFICIENCY: 85%
INPUT POWER: 2980 WATTS (MAXIMUM)**
INPUT CABLE: 3X2.5MM² - 2P+T
INPUT PROTECTION: 32A CIRCUIT BREAKER
OUTPUT CABLE: 50MM²
RECOMMENDED EXTENSION: 4MM² (MAX 30 METERS)
WEIGHT: 3,670 KG
APPROXIMATE DIMENSIONS (HXWXD): 418MMX186MMX75MM***
OBSERVATIONS:
*CURRENT AND POWER MEASURED IN RESISTIVE LOAD
**THE OUTPUT POWER MAY VARY ACCORDING TO THE NETWORK VOLTAGE AND CONDITIONS OF USE
***THE MEASUREMENTS REFERRING TO THE DIMENSIONS OF THE SOURCES HAVE A VARIATION OF APPROXIMATELY 2MM
