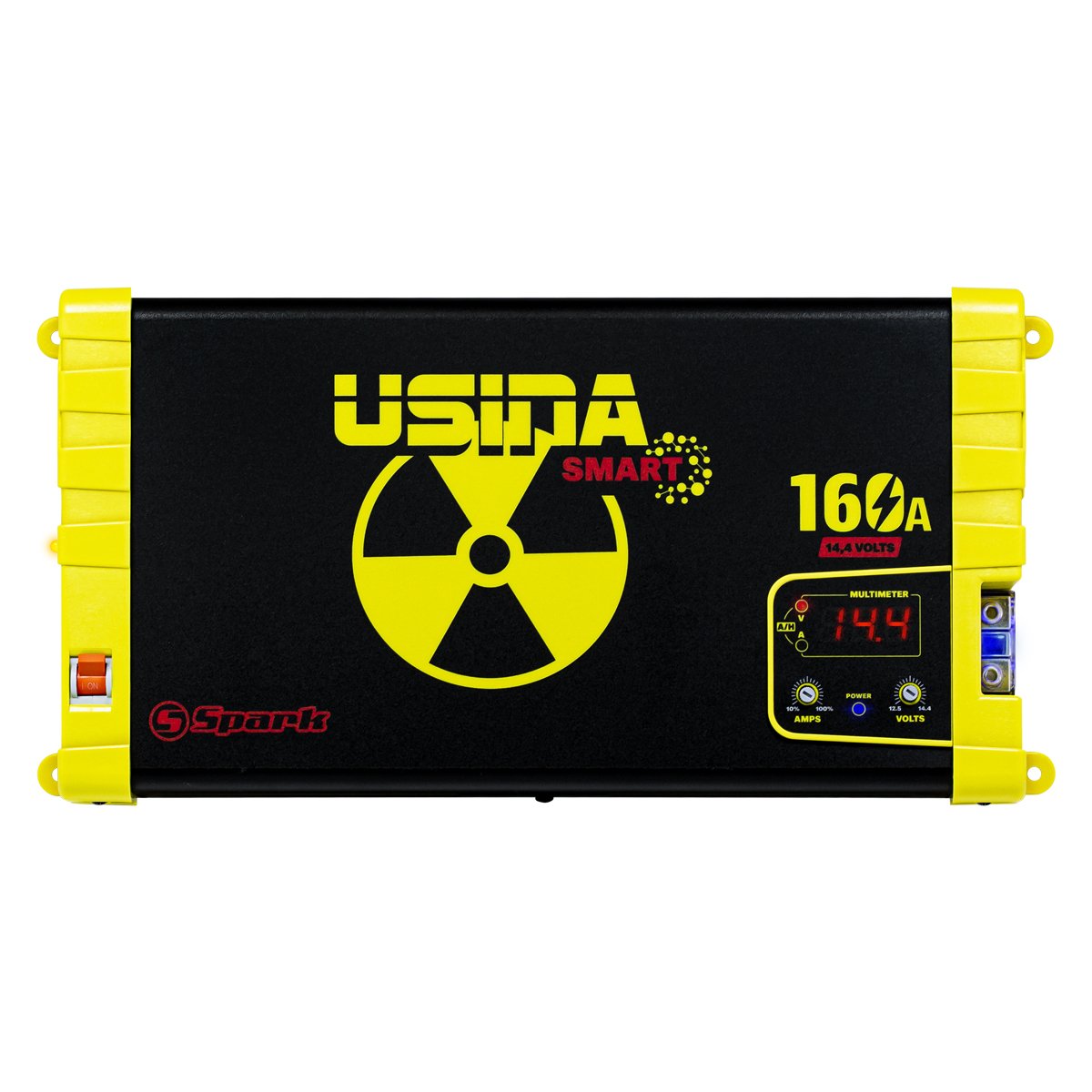

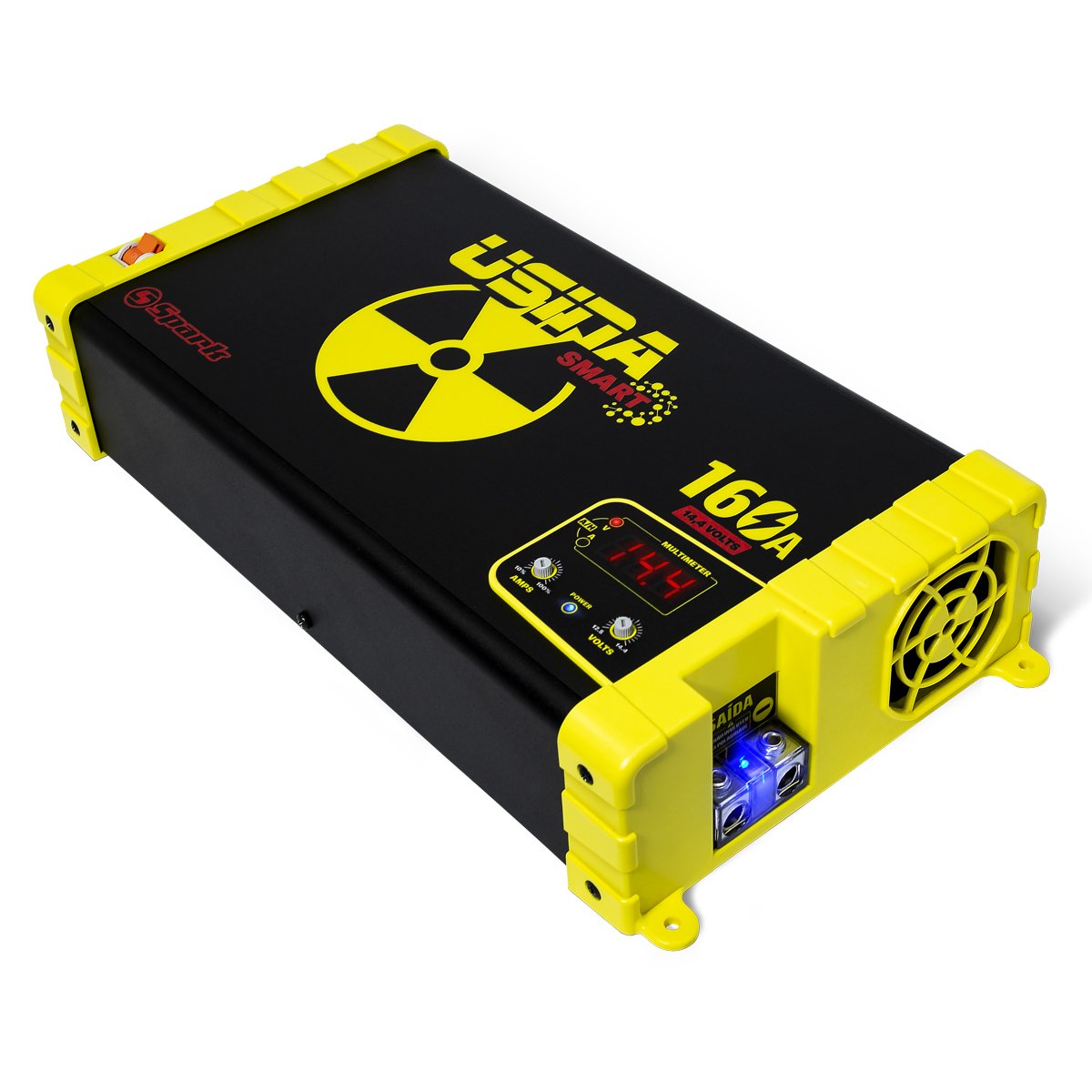

USINA Charge Smart 160A Automotive

USINA Charge Smart 160A Automotive

Preço normal $269.00 USD
Preço normal Preço promocional $269.00 USD
Promoção Esgotado
Tributo incluído. Frete calculado no checkout.

DETAILS



This Power Supply was designed mainly to support the car's sound system leaving the batteries with the charge intact, even if it stays playing for hours.

Spark is one of the leading automotive power supply manufacturers, as it produces excellent quality equipment with great components.

Leadership and quality available to your needs in automotive sound.


An excellent quality product, the Automotive Source Digital Spark Power Plant Smart 160 Amperes Bivolt is another member of the Power Plant family.

With its rated output at 160 amps, the output voltage is 12.5 to 14.4 Volts (adjustable) and the input voltage is 127 to 250 Vac (bivolt). In addition, this power supply already comes with an integrated voltmeter, for greater control of the electric current.

Spark is one of the leading automotive power supply manufacturers, as it produces excellent quality equipment with great components.
Leadership and quality available to your needs in automotive sound.

ADDITIONAL INFORMATION

Product SKU Code USI160A
Availability Immediate dispatch
Recommended Gauge (mm²) 35mm²
Maximum consumption (A) 33A
Output Current 160A
Floating Mode Yes
Recommended generator (KVA) Uninformed
Voltage Adjustment Yes
Total Input Power (Watts) 2400
Output power (Watts) 2000
Performance % 85%
Adjustable Output Current Yes
Input Voltage bivolt
Output Voltage 12.5V to 14.4V
Approximate Product Weight (kg) 3,060
TECHNICAL SPECIFICATIONS
Product SKU: 1660200

Specifications
Input Voltage: Automatic Bivolt
AC 127Vac: 100 @ 140Vac
AC 220Vac: 170 @
250Vac 127Vac Consumption: 33A (maximum)
220Vac Consumption: 17A (maximum)
Output Voltage: 12.5V @ 14.4Vcc ( +-1%)
Output Current: 160A @ 12.5Vdc (+-5%)*
Output Power: 2000 Watts (maximum)**
Efficiency: 85%
Input Power: 2400 Watts (maximum)**
Input Cable : 3x2,5mm² - 2P+T
Input Protection: 32A Circuit Breaker
Output Cable: 35mm²
Recommended Extension: 4mm² (max 30 meters)
Weight: 3,060 Kg
Approximate Dimensions (HxWxD): 378mmX186mmX75mm***
Remarks:
*Current and power measured in resistive load
**The output power may vary according to the network voltage and conditions of use
***The measurements referring to the dimensions of the sources have a variation of approximately 2mm
INCLUDED ITEMS
1 - Automotive Source Digital Spark Power Plant 160A Bivolt
GUARANTEE
12 months
