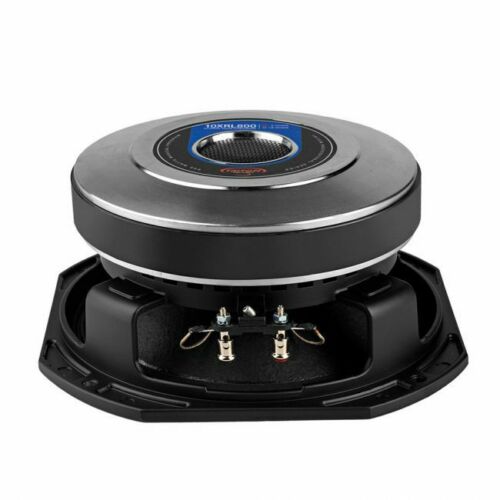

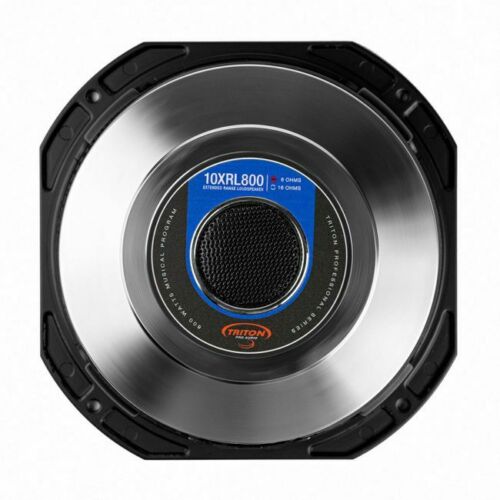

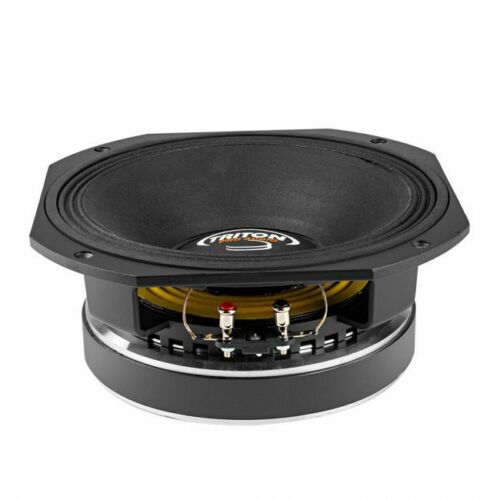

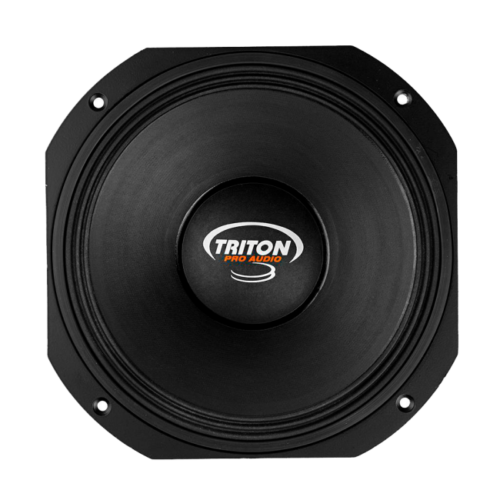

Triton Medium Bass Speaker 10XRL800 400w Rms 8ohms
Triton Medium Bass Speaker 10XRL800 400w Rms 8ohms
Preço normal
$249.00 USD
Preço normal
Preço promocional
$249.00 USD
Preço unitário
/
por
Tributo incluído.
Frete calculado no checkout.
Não foi possível carregar a disponibilidade de retirada.
technical information
3" (76mm) Movable Coil - High Power with Copper-Clad Rectangular Wire
Aluminum.
Cone specially designed for mid-range reproduction
with clarity and naturalness.
Stabilizing rings (shorting rings) in the magnet assembly reduce distortion
harmonics and extend the frequency response at all power levels.
Lightweight and durable aluminum housing with integrated ventilation system
for better heat dissipation and reduced power compression.
Extended frequency response with very high performance, allowing use
as fullrange or mid-bass in LINE ARRAY systems or 2-way speakers with
excellent performance.
NOMINAL DIAMETER 10" (260 MM)
NOMINAL IMPEDANCE 8 Ω
NOMINAL RESONANCE 75 Hz
MAXIMUM CONTINUOUS POWER 400 W AES
MUSICAL PROGRAM POWER 800 W
FREQUENCY RESPONSE 70 Hz TO 6.2 KHZ
SENSITIVITY 101 DB SPL (1W@1M)
MINIMUM IMPEDANCE 6.88 Ω
3" MOBILE COIL DIAMETER (76 MM)
RECTANGULAR WIRE MOBILE COIL MATERIAL - CCAW
MAXIMUM PEAK TO PEAK EXCURSION 21 MM
FS 76.14 Hz
RE 5.2 Ω
QMS 5,940
QES 0.206
QTS 0.199
VAS 27.937 L (0.986 FT³)
SD 0.0347 M² (53.785 POL²)
XMAX (LINEAR MATHEMATICAL) 4.7 MM
BL 17.972 T/M
LE @ 1KHZ 0.10 MH
MMS 26.73G
No. 5.8%
224 MM BAFFLE CUTTING DIAMETER
VOLUME OCCUPIED BY SPEAKER 1.96 L
NET WEIGHT 7.8 KG
WEIGHT WITH PACKAGING 8.6 KG
PACKAGING DIMENSIONS (LXAXP) 27.5 X 13.5 X 27.5 CM
VOLUME OCCUPIED BY THE PACKAGING 0.01 M³
