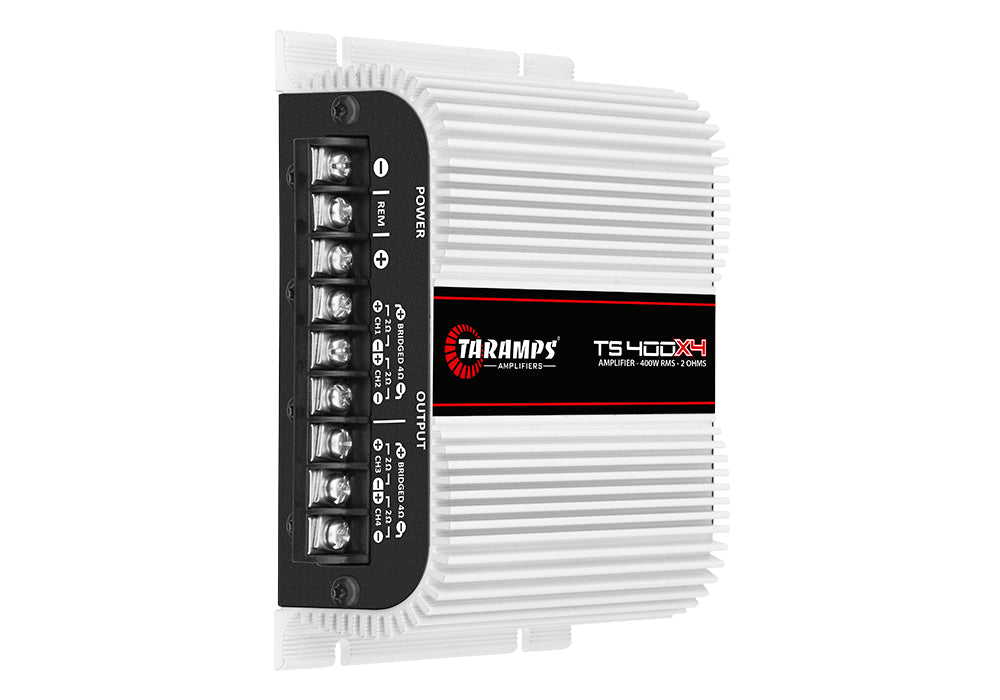

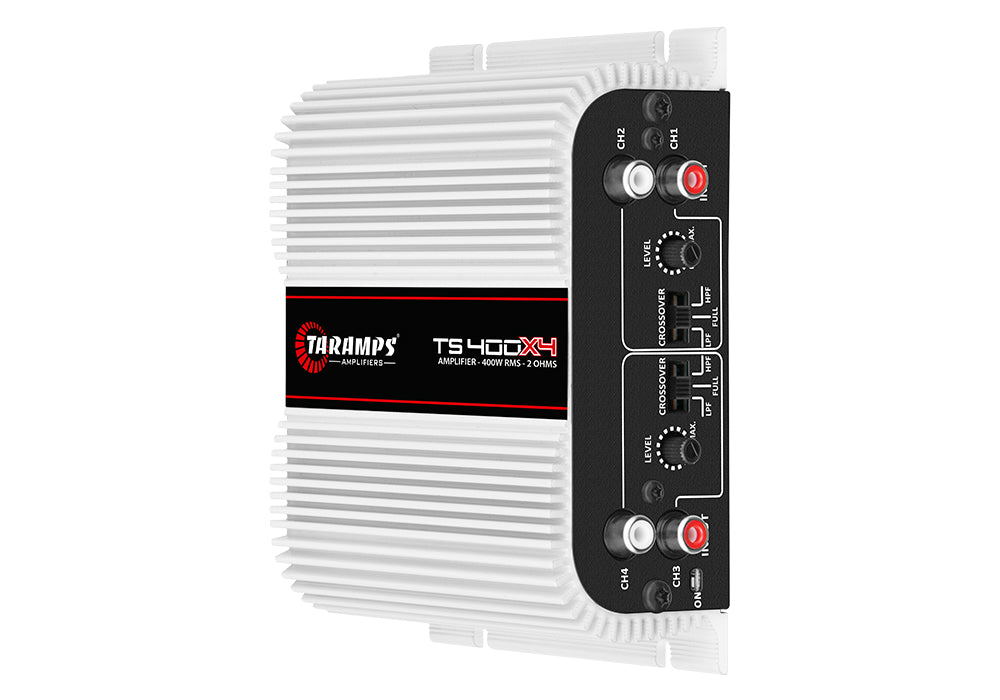

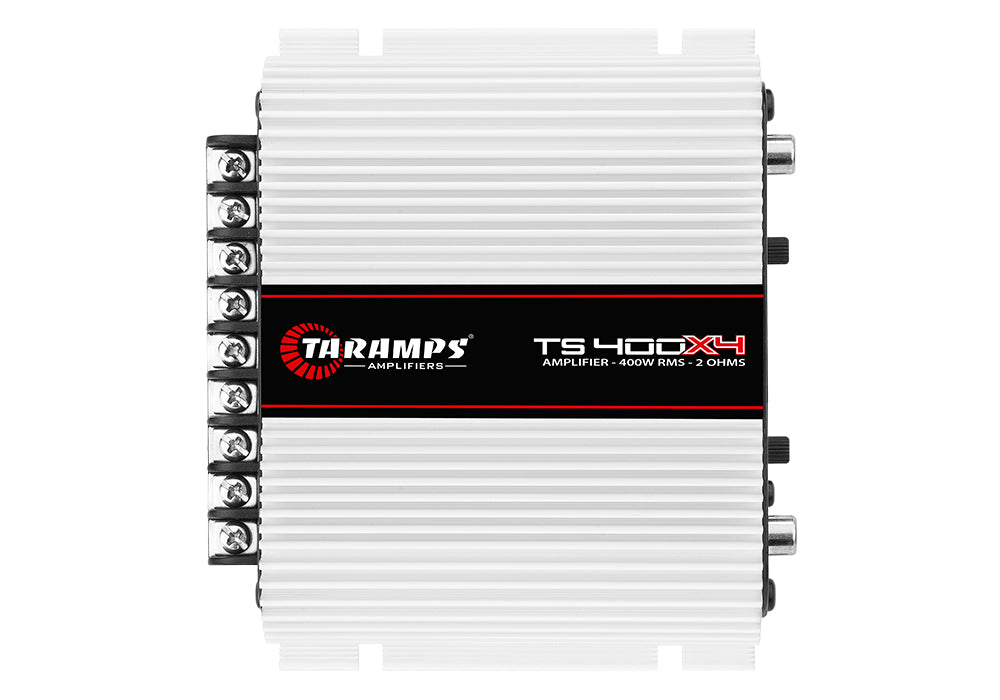

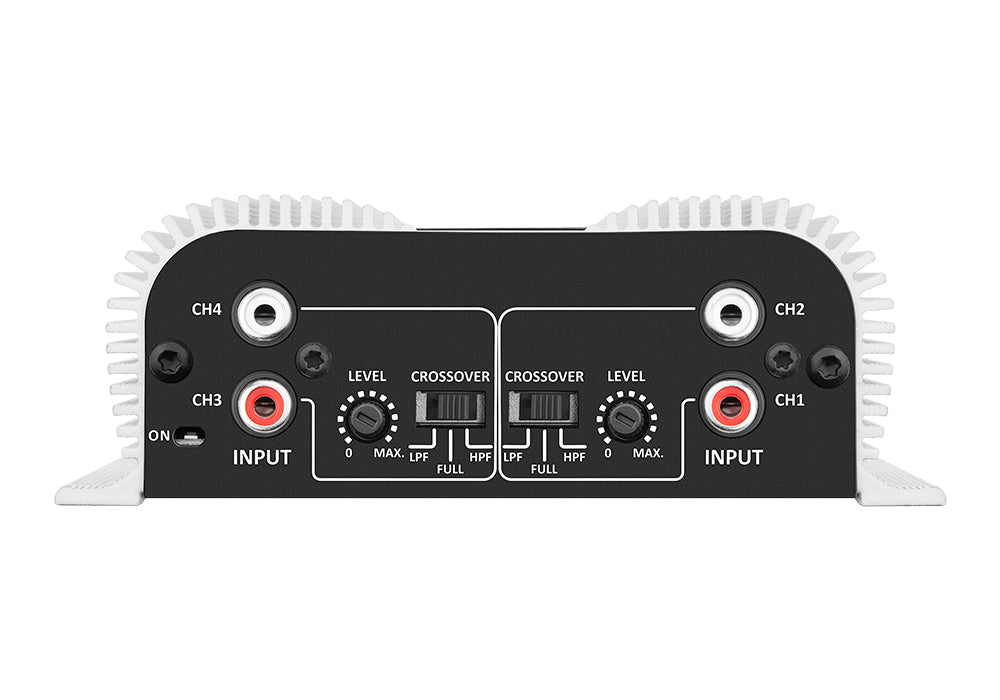

Amplifier TARAMPS TS400x4 400watts

Amplifier Module Taramps TS400 4 Channels

,

TECHNICAL INFORMATION
OPERATION CLASS Class D
NUMBER OF CHANNELS 04
MAXIMUM POWER
@ 13,8 VDC - 2 OHMS - 400 W RMS (4 x 100W RMS)
@ 13,8 VDC - 4 OHMS - 252 W RMS (4 x 63W RMS)
Bridged @ 13,8 VDC - 4 OHMS - 400W RMS (2 x 200W RMS)
INPUT SENSITIVITY 200mV (Vol = max.)
SIGNAL TO NOISE RATIO > 90dB
FREQUENCY RESPONSE (Full Range): 18 Hz to 30 kHz (-1dB)
CROSSOVER HIGH PASS (HPF) 90 Hz (-12dB/8th)
CROSSOVER LOW PASS (LPF) 90 Hz (-12dB/8th)
INPUT IMPEDANCE 22K ohms
OUTPUT IMPEDANCE 2 ohms
PROTECTION SYSTEM Thermal and Output Short
MIN. SUPPLY VOLTAGE 8 VDC
MAXIMUM POWER SUPPLY VOLTAGE 16 VDC
CONSUMPTION AT REST 0.8A
MAXIMUM MUSIC CONSUMPTION @13,8VDC: 16.5A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL @13,8VDC: 33A
DIMENSIONS (H X W X D) 5.433 x 1.929 x 4.763 inches (138 x 49 x 121 mm)
