Taramps MD8000 1ohm 1channel

Product Information

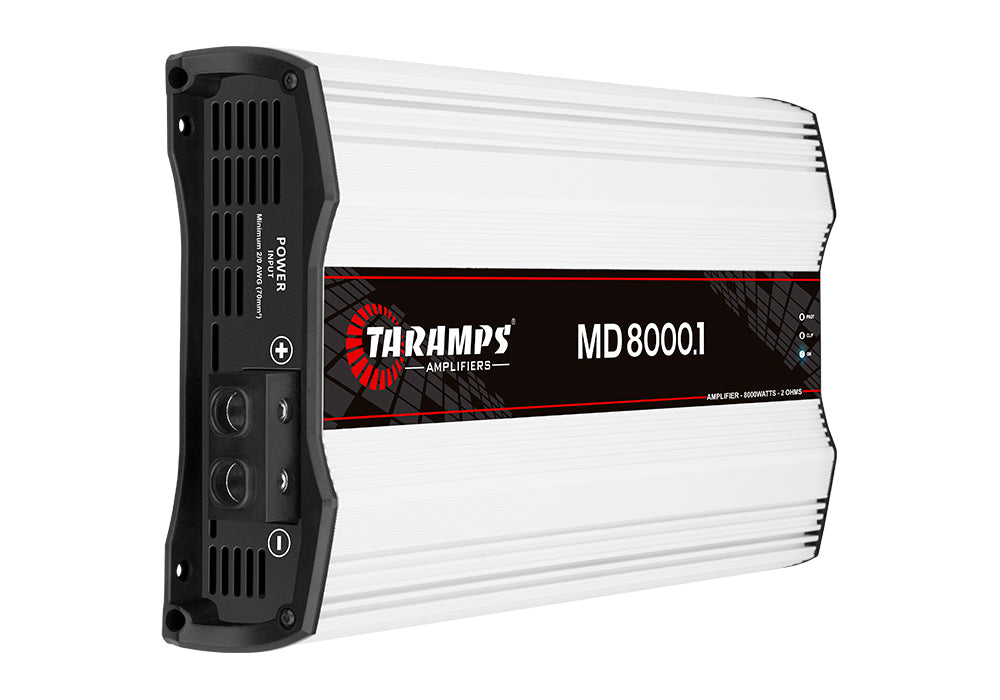

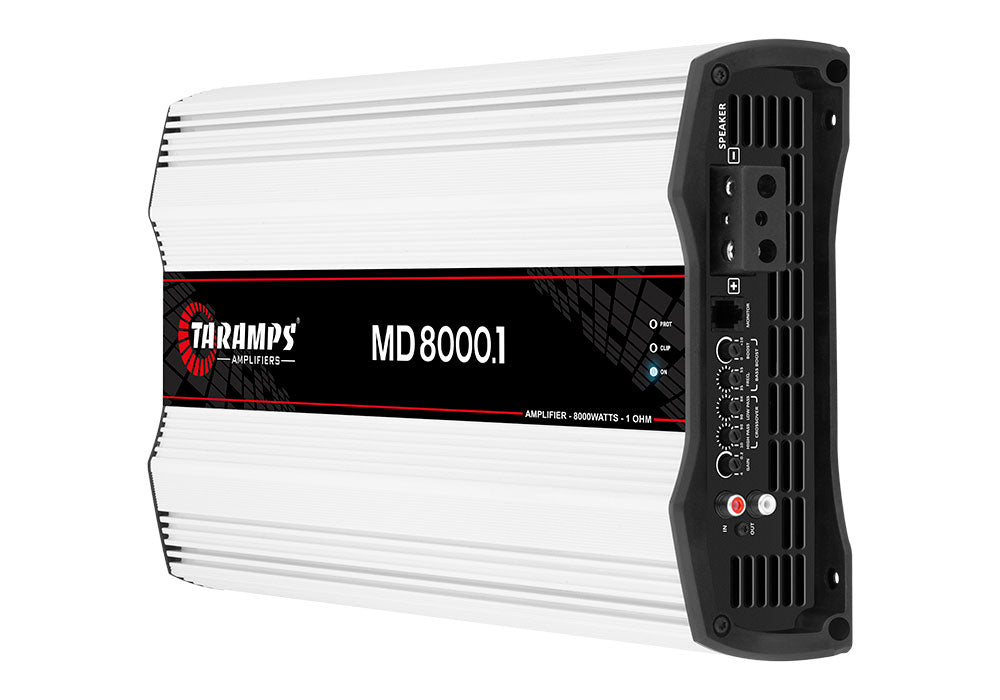

Taramps MD 8000 - 8000W | 1 OHM

The MD 8000.1 1 OHM amplifier module, is carefully designed with the highest technology, and high performance for automotive sound systems. It is a mono amplifier and its maximum power is 8000W RMS with 1 OHM impedance, and one 8000W RMS channel. The MD 8000.1 is FULL RANGE this way you appreciate all the frequencies in the right measure.

Technical specifications:
- Operation Class: D
- Number of Channels: 01
- Maximum Power:
@ 12.6 VDC - 1 OHM: 8000W RMS
@ 12.6 VDC - 2 OHMS: 5120W RMS
- Input Sensitivity: 220mV
- Signal to Noise Ratio: >90dB
- Frequency Response: (Full Range): 10Hz to 10KHz(-3dB)
- Crossover High Pass (HPF): Variable 10Hz to 90Hz (-12dB / 8th)
- Crossover Low Pass (LPF): Variable 90Hz to 10KHz (-12dB / 8th)
- Bass Boot:35Hz ~ 55Hz, 0 to 10dB (50Hz)
- Input Impedance: 22K OHMS
- Protection System:Short-Circuit to Output, Short on output compared to GND, Low impedance at output, low/high supply voltage and Thermal protection
- Maximum Supply Voltage: 16VDC
- Consumption at rest: 2A
- Maximum Musical Power: @ 12.6 VDC: 373.4A
- Rated Power Consumption: 746.90A
- Dimensions(W x H x D): 228 x 70 x 419mm
- Weight: 6.10 kg

On Package:
- 1 Amplifier Taramps MD 8000.1 1 OHM
- Manual
- Sticker
