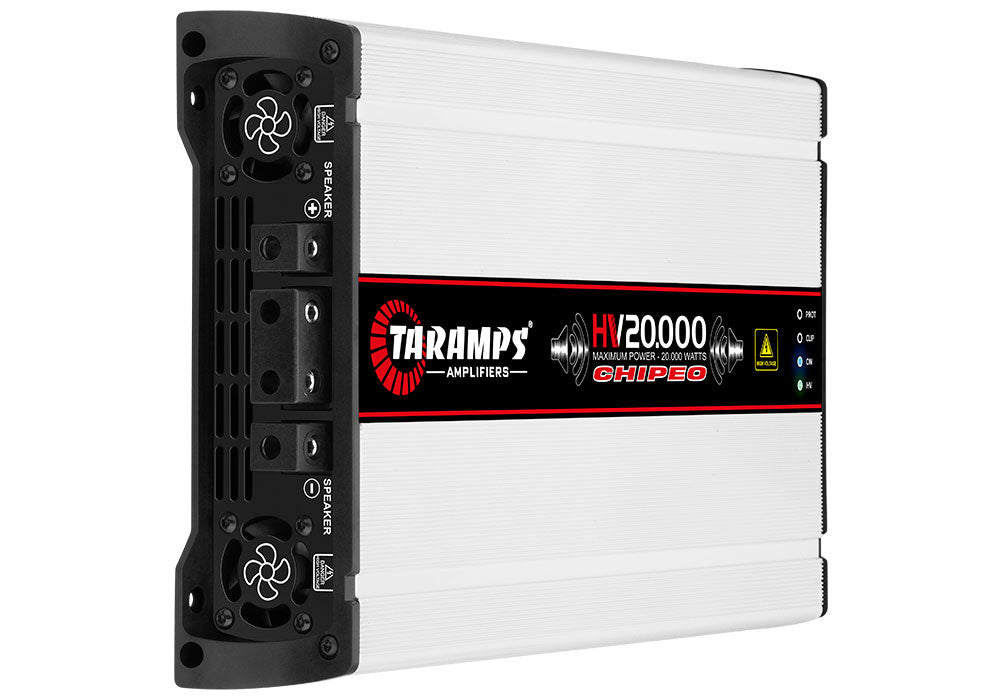

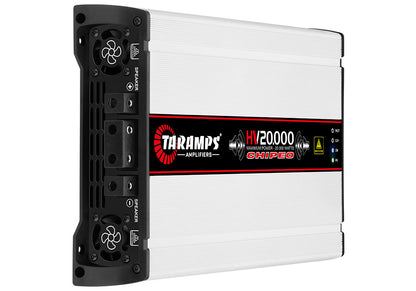

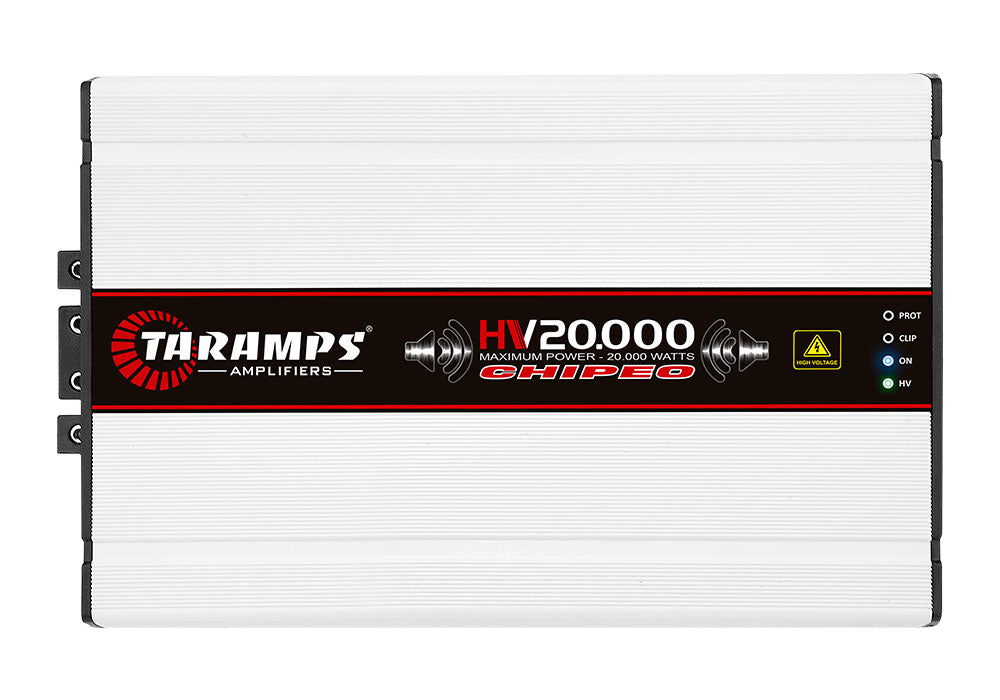

Taramps HV20.000 Chipeo 0.5 Ohm High voltage 20k Watts rms
Taramps HV20.000 Chipeo 0.5 Ohm High voltage 20k Watts rms
Preço normal
$559.99 USD
Preço normal
Preço promocional
$559.99 USD
Preço unitário
/
por
Tributo incluído.
Frete calculado no checkout.
Não foi possível carregar a disponibilidade de retirada.
Description
Power, performance and high performance are some of the synonyms of this module from Taramps. It has a maximum power of 20,000 Watts RMS at 0.5 ohm, thermal protection and anti short circuit. It is powered by batteries in series, as it uses batteries as its source of energy. Member of a unique line in its category, delivering extremely high power in mid and large car sound systems. Highlights from sub-bass to high mids, with high performance in tone and sound quality.
TECHNICAL INFORMATION
NUMBER OF CHANNELS 01
WORKING VOLTAGE 164VDC @ 0.5 Ohm - 13 Batteries
INPUT SENSITIVITY 330mV (Level 100%) @ 0.5 Ohm
TOTAL HARMONIC DISTORTION 0.2%
SIGNAL/NOISE RATIO >98dB
FREQUENCY RESPONSE 10Hz ~ 10KHz (1dB)
EFFICIENCY 91% @ 0.5 Ohm (at full power)
INPUT IMPEDANCE 22K Ohms
PROTECTION SYSTEM Short circuit for output,
Short on production compared to GND,
Low output impedance,
High/Low supply voltage
Thermal protection**
MINIMUM SUPPLY VOLTAGE 100VDC
MAXIMUM SUPPLY VOLTAGE 190VDC
CONSUMPTION AT REST 150mA
MAXIMUM MUSICAL CONSUMPTION @ 0.5 OHM 67A
MAXIMUM SINUSIDAL CONSUMPTION @ 0.5 OHM (100HZ) 134A
DIMENSION (W X AX P) 228 x 64 x 358mm
WEIGHT 3.60Kg
MAXIMUM OUTPUT POWER @ 164VDC- 0.5 OHM* 20,000W RMS
