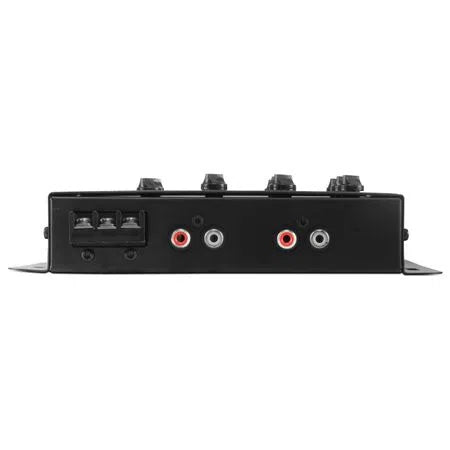

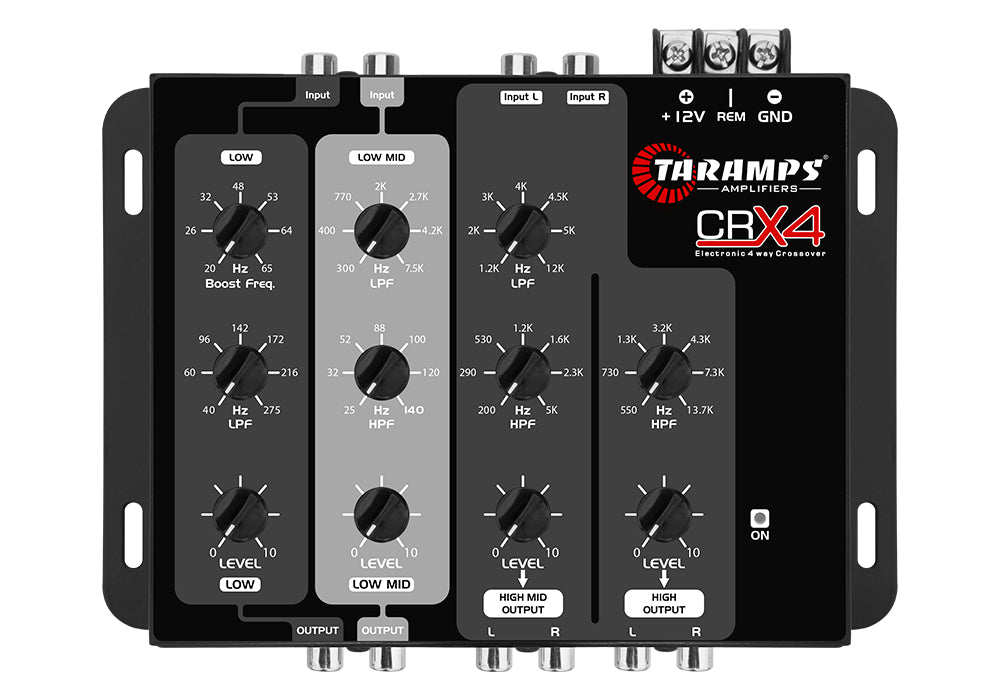

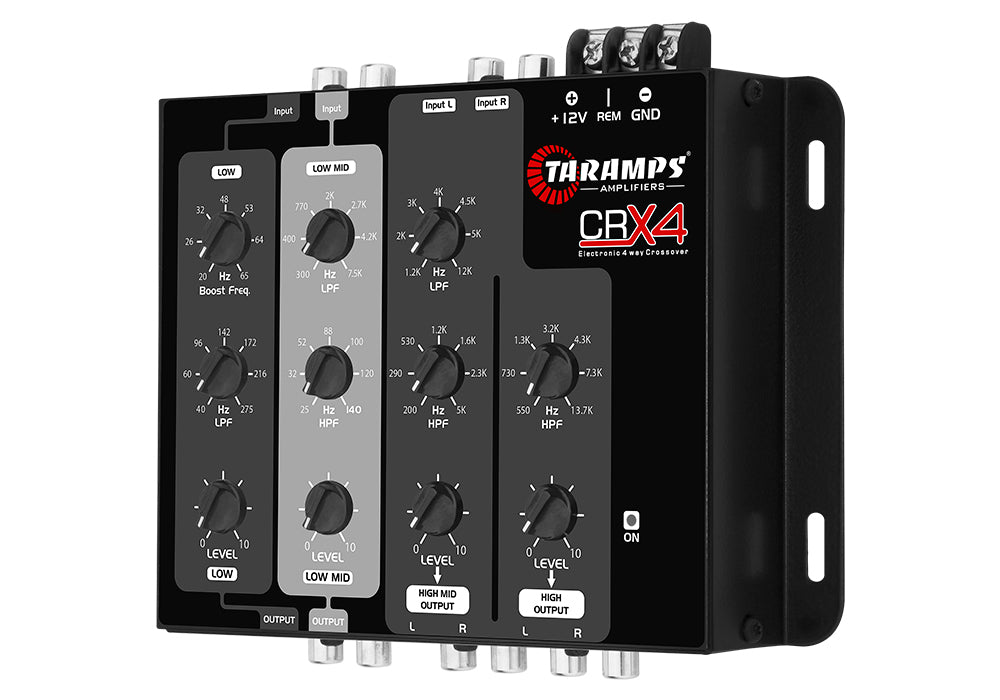

Taramps Crossover CRX4 4-channel Audio Processor
Taramps Crossover CRX4 4-channel Audio Processor
Preço normal
$129.99 USD
Preço normal
Preço promocional
$129.99 USD
Preço unitário
/
por
Tributo incluído.
Frete calculado no checkout.
Não foi possível carregar a disponibilidade de retirada.
Description
Aiming to implement quality, technology and reliability, Taramps presents the CRX4 crossover for car sound systems. With high quality raw material, it is very versatile, having 4 ways with variable settings of the HIGH PASS and LOW PASS filters, and also output level control in each way, in addition to adjustable BASS-BOOST to better divide the frequencies into bass, middle and treble. Practicality and high performance for your car's sound system that only Taramps can offer, welcome to our world of sound.
TECHNICAL INFORMATION
OUTPUT IMPEDANCE 27K OHMS
MAXIMUM INPUT LEVEL 8V RMS
MAXIMUM OUTPUT LEVEL 8V RMS
CROSSTALK (SEPARATION BETWEEN CHANNELS) >80dB
SUPPLY VOLTAGE 10 ~15.5VDC
PROTECTION SYSTEM Against Polarity Reversal
QUANTITIES OF ROADS 4
VIA LOW Cutoff Frequency / Variable (LPF): 40Hz ~275Hz (-12dB/8th)
BASS BOOST Variable Center Frequency: 20~65Hz (Fixed gain 6dB)
VIA LOW MID Minimum frequency (HPF cut) / Variable: 25Hz ~ 140Hz (-12dB/8th)
Maximum frequency of (LPF cut) / Variable: 300Hz ~7.5Hz (-12dB/8th)
VIA HIGH MID Minimum frequency of (HPF cut) / Variable: 200Hz ~5KHz (-12dB/8th)
Maximum frequency of (LPF cut) / Variable: 1.2KHz ~ 12KHz(-12dB/8th)
VIA HIGH Cutoff frequency / Variable: 550Hz ~13.7KHz (-12dB/8th)
DIMENSIONS (LXAXP) 190 x 40 x 145mm
WEIGHT 0.560kg
EAN 7898556840118
ADDITIONAL INFORMATION
Power supply: With switched DC-DC converter
Voltage range: 10 ~ 15.5 VDC
Nominal consumption (12.6 V): 0.38 A
