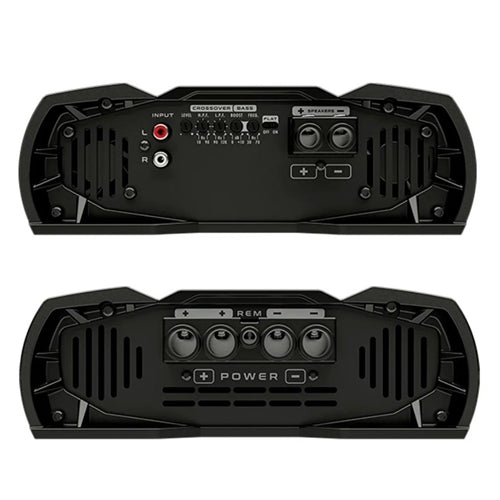

Stetsom Amplifier Vulcan 5K 2ohm
Stetsom Amplifier Vulcan 5K 2ohm
STETSOM VULCAN 5K - 5000 RMS 2 OHMS AMPLIFIER MODULE
STETSOM VULCAN 5K 5000 WATTS RMS
Product Details
Stetsom 5000 Rms Amplifier Module Vulcan 5000 Mono Digital 1 Channel 1 Ohm 2 Ohms Class D Full Range Bass Boost Crossover Level Control Flat
The Vulcan 5000 amplifier is developed with the highest technology and performance for automotive sound systems. It is mono, with a power of 5000 Watts Rms on 1 channel. The Vulcan 5000 is Full Range playing all the frequencies in the right measure for you. And it has a black design to make your system more sophisticated. Check out its main features:
Switch to Flat Mode
Regulated Source System
Control HPF, LPF and Bass Boost
New Design More Robust and Efficient
Technical specifications Stetsom Vulcan 5000 Mono Module:
Vulcan 5000 1 Ohm
Rated Power @ 14.4V - 1 Ohm (RMS): 5300W RMS
Nominal Power @ 14.4V - 2 Ohms (RMS): 3300W RMS
Rated Power @ 12.6V - 1 Ohm (RMS): 5000W RMS
Rated Power @ 12.6V - 2 Ohms (RMS): 2800W RMS
Musical Consumption: 242A
BASS Consumption: 485A
Weight: 4.2 Kg
Vulcan 5000 2 Ohms
Rated Power @ 14.4V - 2 Ohms (RMS): 5300W RMS
Rated Power @ 14.4V - 4 Ohms (RMS): 3000W RMS
Rated Power @ 12.6V - 2 Ohms (RMS): 5000W RMS
Rated Power @ 12.6V - 4 Ohms (RMS): 2600W RMS
Musical Consumption: 227A
BASS Consumption: 445A
Weight: 4.3 Kg
Bass Boost
Frequency: 30Hz ~ 70Hz
Boost: 0 ~ + 10dB
General Characteristics
Number of Channels: 1
Minimum Input Sensitivity: 200mV
Signal Noise Ratio:> 90dB
Frequency Response (-3 dB): 10Hz ~ 12KHz
Low Pass Crossover: 90Hz ~ 12KHz
Crossover High Pass: 10Hz ~ 90Hz
Input Impedance: 12K Ohms
Supply Voltage: 9V ~ 16V
Dimensions (H x W x D): 78 x 231.5 x 332mm
