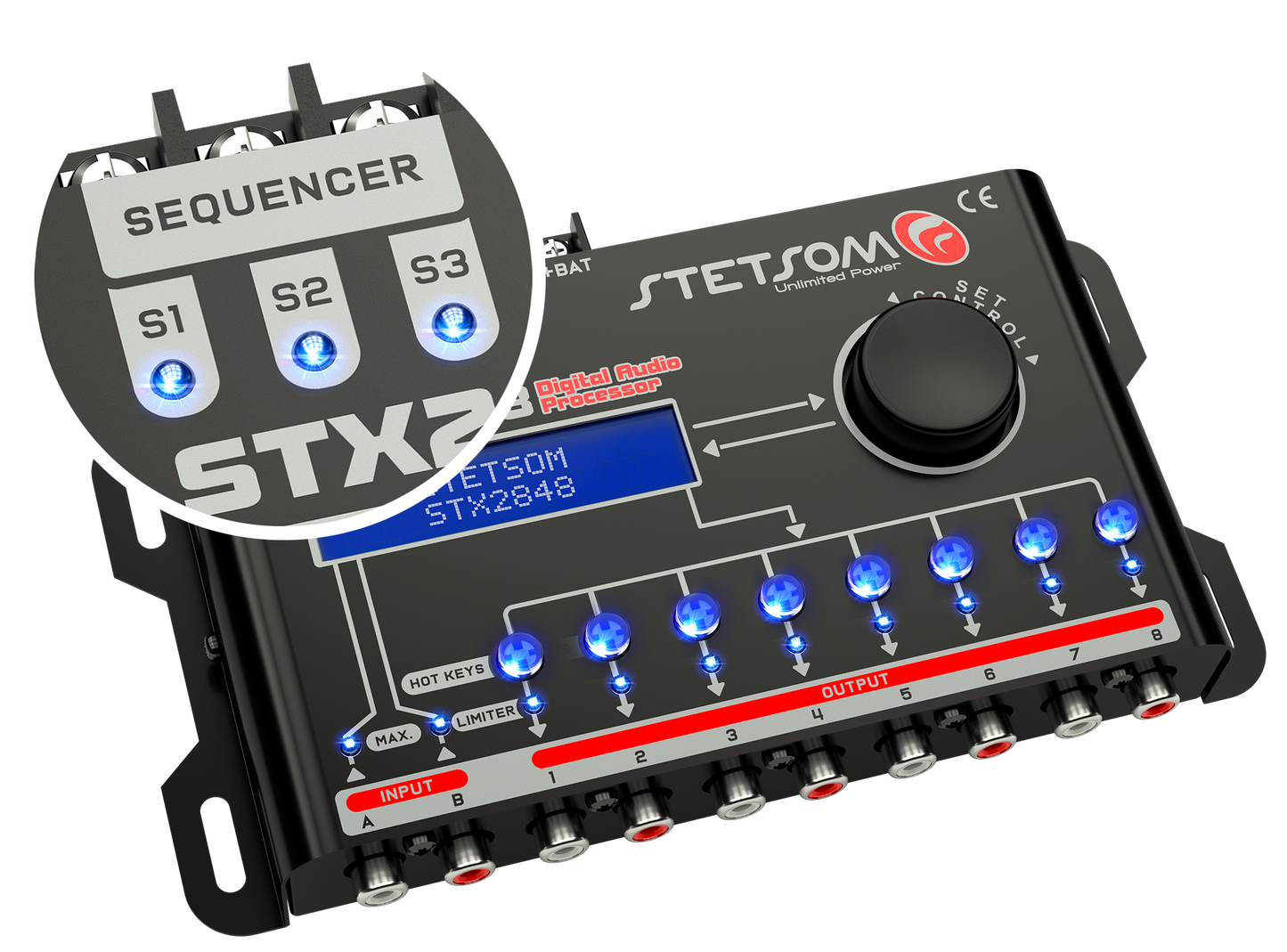

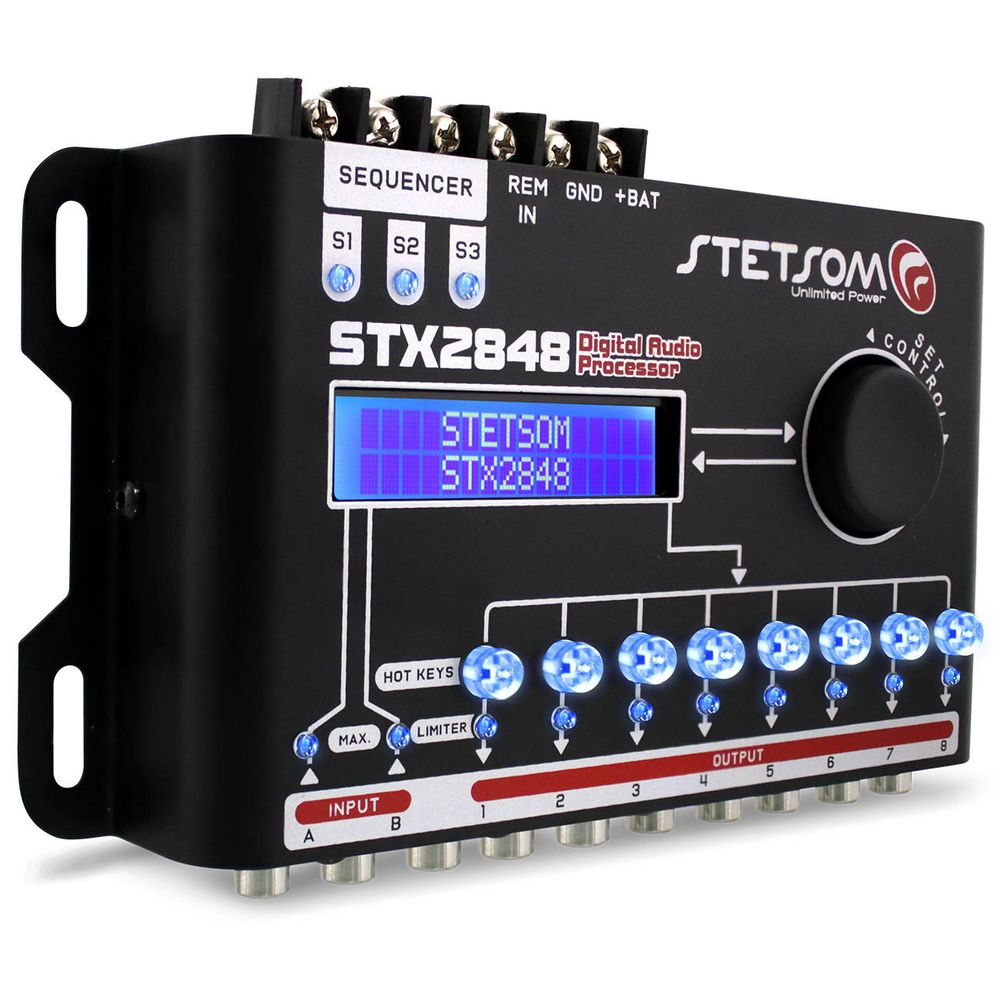

STETSOM STX2848 DIGITAL AUDIO EQUALIZER PROCESSOR CAR AUDIO
STETSOM STX2848 DIGITAL AUDIO EQUALIZER PROCESSOR CAR AUDIO
Preço normal
$157.99 USD
Preço normal
Preço promocional
$157.99 USD
Preço unitário
/
por
Tributo incluído.
Frete calculado no checkout.
Não foi possível carregar a disponibilidade de retirada.
DESCRIPTION
Digital Audio Processor – 2 Input Channels – 8 Output Channels
Bringing innovation and technology to the Automotive Sound market, STETSOM launches the STX2448 Digital Automotive Digital Audio Processor, capable of making various adjustments, from filters, graphic and parametric equalization, alignment, phase inversion, limiter, audio generator, among others . Enhancing Your Audio System!
Through an LCD display and an intuitive interface, it allows real-time audio adjustments.
The STX2448 features 2 audio inputs (A and B) and 8 independent outputs, and allows you to choose the audio source (A, B or A + B) for each output.
It has an integrated equalization system, with 15-band graphic equalizer, manual tuning or through 12 presets (Flat, Loudness, Bass Boost, Mid Bass, Treble Boost, Powerful, Electronic, Rock, Hip Hop, Pop, Vocal and Pancadão) .
For professional equalization adjustments, it has 1 INPUT Parametric Equalizer and 1 OUTPUT Parametric Equalizer with gain control, frequency specific setting and equalizer bandwidth. Allowing fine adjustments and detailed equalization control.
The Crossover function allows you to precisely define the cut frequencies, attenuation rates and topology of the LowPass and HighPass filters with Butterworth and Linkwitz-Riley filters (12/18/24/36/48 dB / 8ª).
To aid in the protection of amplifiers and loudspeakers, the STX2848 features a Limiter with Dynamic Attack-Release system that dynamically controls the Attack and Release parameters in real time, providing security and sound fidelity.
In the audio treatment, it also has Alignment capabilities through High Accuracy Delay, Phase Inversion, Independent Gain by Output and Master Level.
For accurate measurements and adjustments, the STX2848 features an integrated Audio Generator with tone generation and frequency sweep and Pink Noise.
Configuration Copy function between output channels.
It also has the functions of management, Save and Load Settings in memory, Security Password that blocks the editing of the parameters, Marquee / Text Display and Language Selection.
TECHNICAL SPECIFICATIONS
FEATURES STX2848
Number of processors (DSPs) 1
Input Channels 2
Output Channels 8
Output Gain: ✔
Master Level 0 ~ 100%
Graphic Equalizer 15 Bandas (Band)
Graphic Equalizer presets 12
Parametric Equalizer Input 1
Parametric Equalizer Output 8 / 1 por Canal
Routing A,B / A+B
Crossover Butterworth (dB/8ª) 12/18/24/36/48
Crossover Linkwitz-Riley (dB/8ª) 12/18/24/36/48
Limiter ✔
Automatic Attack/Release ✔
Delay 0 a 8ms (275cm)
Frequency Generator 10Hz a 22kHz, Level -60 a 0dB
Frequency scan Freq. inicial e final 10Hz a 22kHz / Level -60 a 0dB / Controle de velocidade
Display LCD16x2 Caracteres/Characters
Screen saver Texto/Text
Security Password ✔
Frequency Response 10Hz @ 22.5kHz @ -1dB
Latency 1.08ms
Signal to Noise >90dB
THD <0,01%
Channel Separation >80dB
Maximum Input Voltage 5,6 Vpp (+8,2 dBu)
Maximum Output Voltage 5,6 Vpp (+8,2 dBu)
Supply Voltage 10V a 15V DC
Dimensions (H x W x D) mm 37 x 200 x 101 mm
Weight Kg 460g
