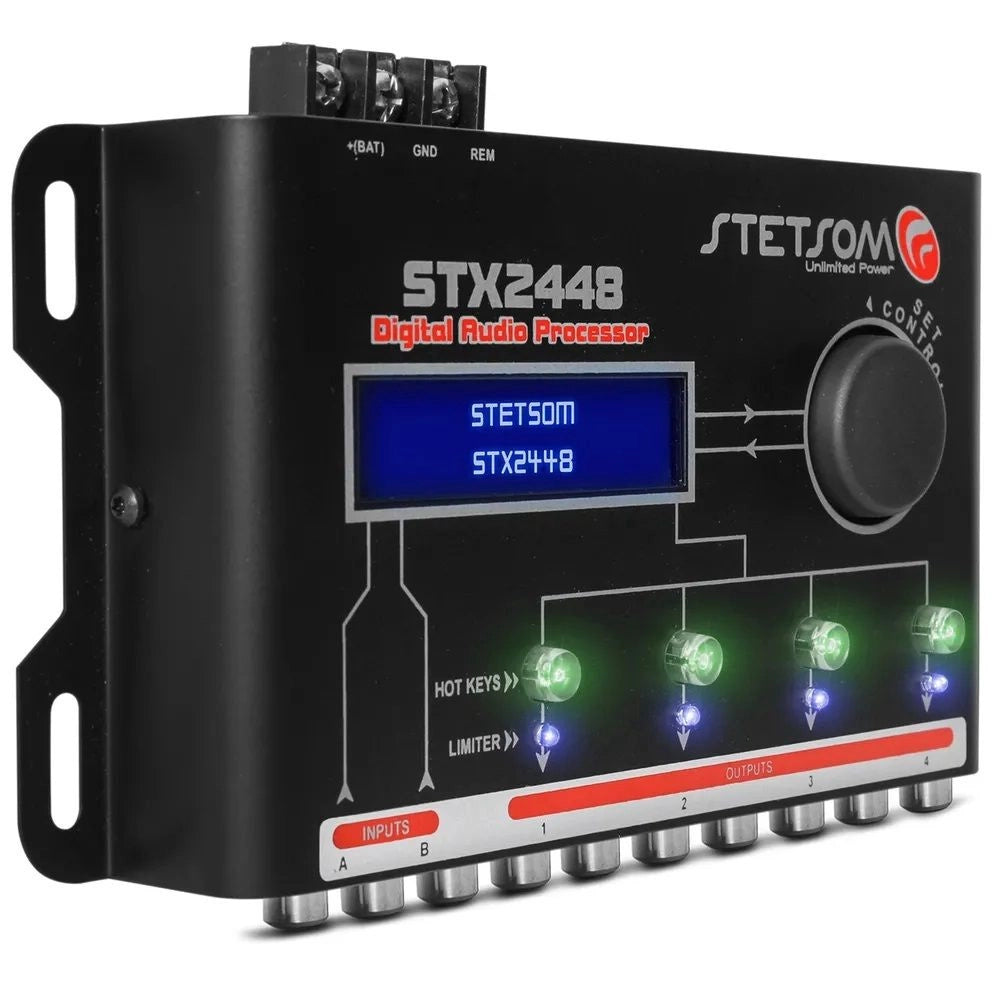

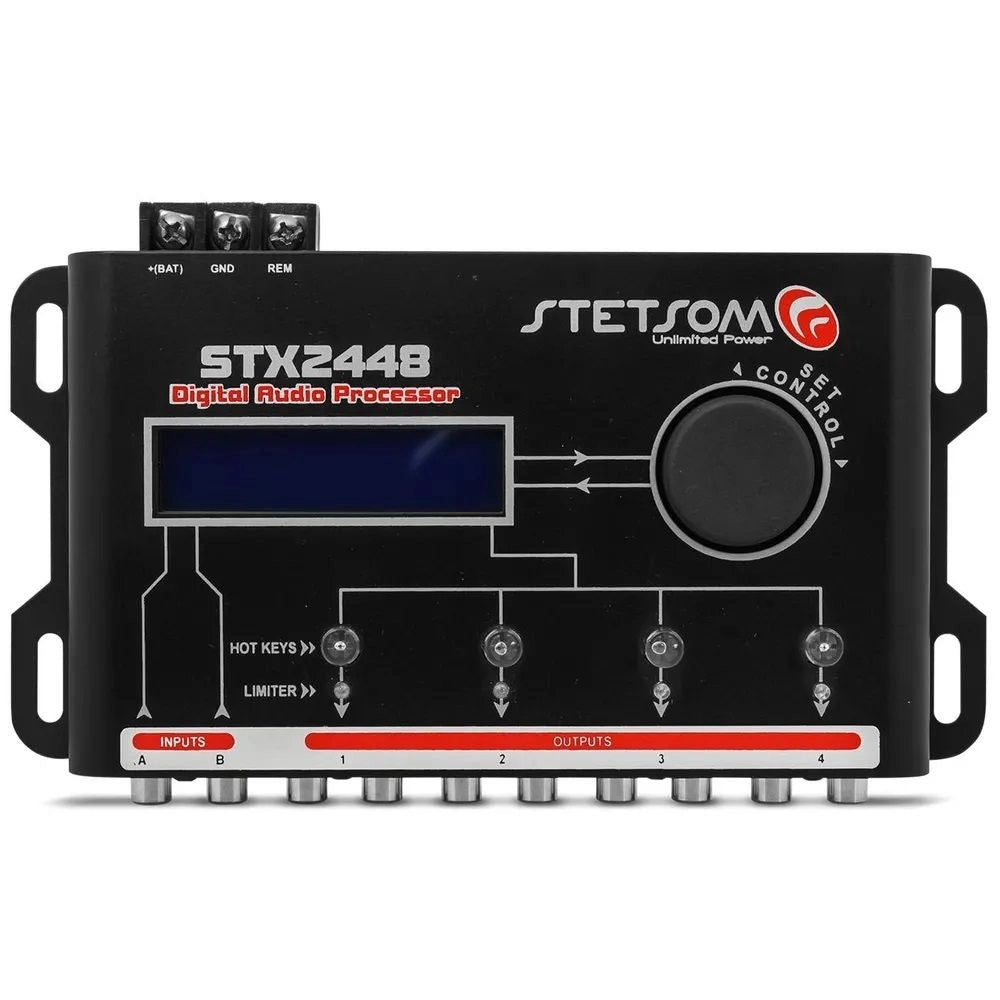

STETSOM STX2448 DIGITAL AUDIO EQUALIZER PROCESSOR CAR AUDIO 4 channels
Stetsom Stx2448 Digital Audio Equalizer Processor Car Audio
Product Description
TECHNICAL SPECIFICATIONS
Number of Processors (DSPs) 1
Number of Input Channels 2
Number of Output Channels 4
Output Gain ✔
Master Level 0 ~ 100%
Graphic Equalizer 15 Band (Band)
Graphic Equalization Presets 15
Parametric Input Equalizer 1
Parametric Output 1 / Output Equalizer (Total: 4)
Routing A, B / A + B
Butterworth Crossover (dB / 8th) 12/18/24/36/48
Linkwitz-Riley Crossover (dB / 8th) 12/18/24/36/48
Limiter ✔
Automatic Attack / Release ✔
Delay 0 ~ 8ms (275cm)
Frequency Generator ✔
Frequency Scan ✔
Display LCD16x2 Characters / Characters
Text / Text Screen Saver
Security Password ✔
Frequency Response 10Hz ~ 22.5KHz @ -1 dB
Latency 1.08 ms
Signal to Noise Ratio> 90 dB
THD <0.01%
Channel Separation> 80 dB
Maximum Input Voltage 4.5 Vpp (+6.3 dBu)
Maximum Output Voltage 4.5 Vpp (+6.3 dBu)
Power Supply Voltage 10V ~ 15V DC
Dimensions (H x W x H) mm 37 x 200 x 101 mm
Weight kg 0.455
