Taramps MD1800 1ohm 1channel

TARAMPS MD 1800 1 CHANNEL

1,2,4 OHMS

Product Information

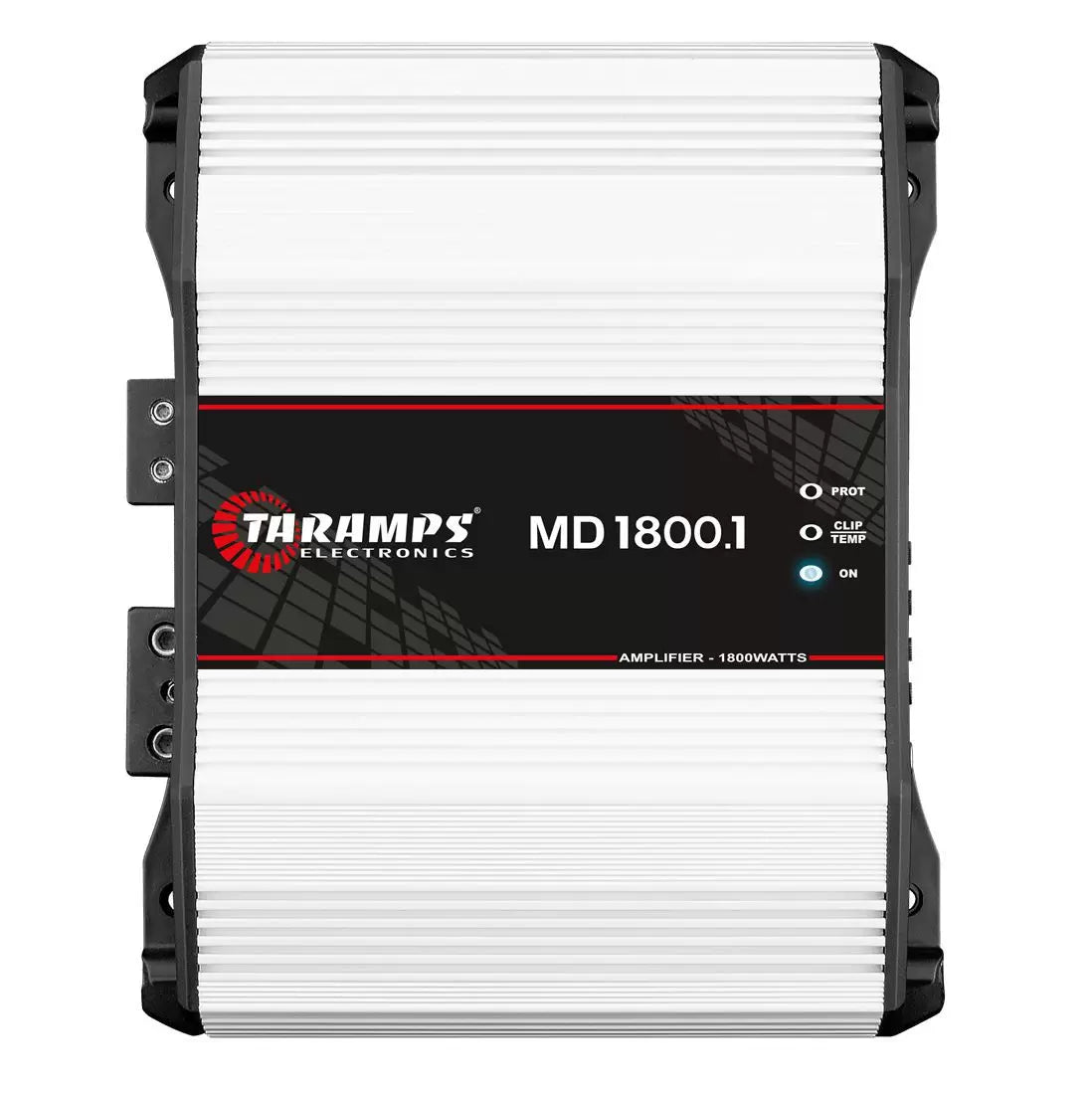

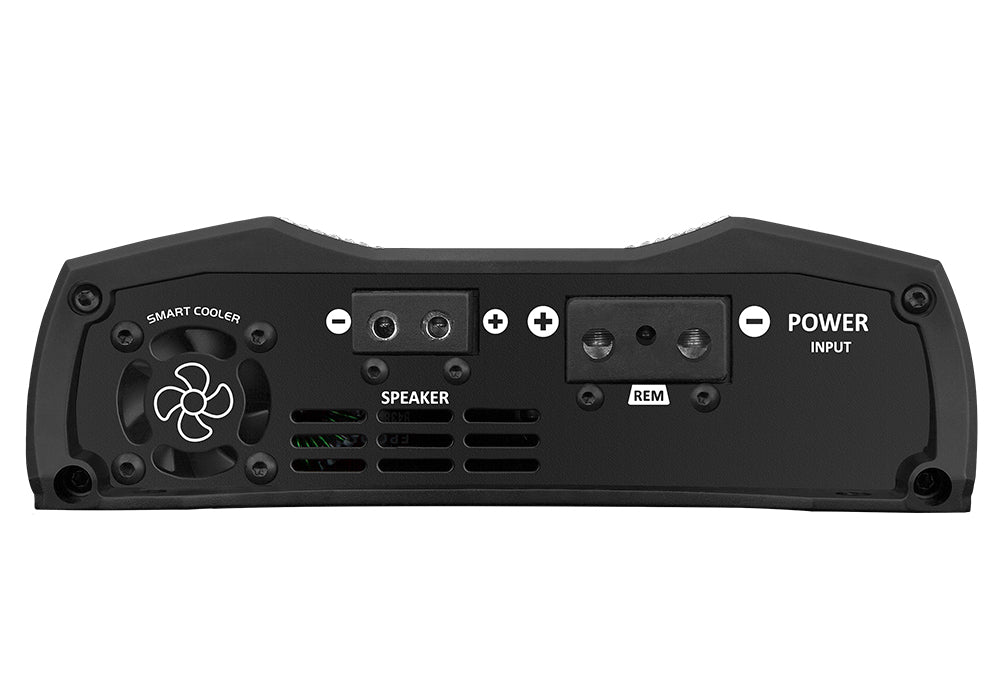

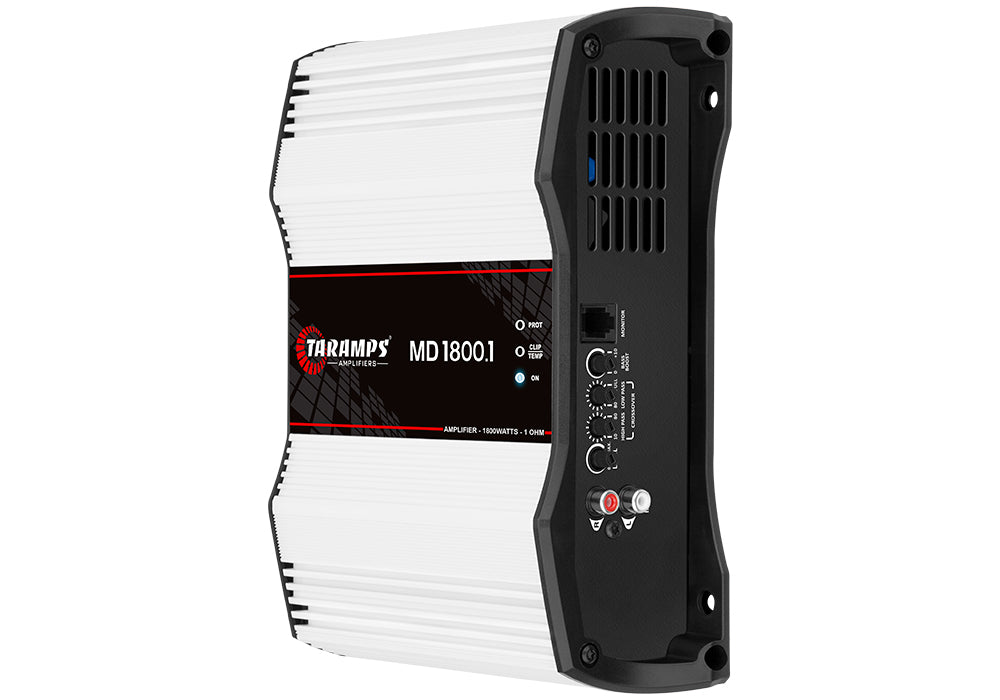

Taramps MD 1800.1 - 1800W RMS | 1 OHM
The MD 1800.1 1 OHM amplifier module, is carefully designed with the highest technology, and high performance for automotive sound systems. It is a mono amplifier and its maximum power is 1800W RMS with 1 OHM impedance, and one 1800W RMS channel. The MD 1800 is FULL RANGE this way you appreciate all the frequencies in the right measure.

Technical specifications:
- Operation Class: D
- Number of Channels: 01
- Maximum Power:
@ 12,6 VDC - 1 OHM: 1800W RMS
@ 12,6 VDC - 2 OHMS: 1410W RMS
- Input Sensitivity: 220mV
- Signal to Noise Ratio: >88dB
- Frequency Response(Full Range): 10Hz to 20KHz(-3dB)
- Crossover High Pass (HPF): Variable: 10Hz to 80Hz (-12db/8th)
- Crossover Low Pass (LPF): Variable: 80Hz to Full (-12db/8th)
- Bass Boost: 0 to 10.5dB(50Hz)
- Input Impedance: 10K OHMS
- Protection System: Output Short / High/Low Supply Voltage / Thermal Protection
- Maximum Supply Voltage: 16VDC
- Consumption at rest: 1.7A
- Maximum Musical Power: @ 12.6VDC: 91A
- Maximum Sine Signal Consumption:@12,6VDC: 182A
- Dimensions(W x H x L): 228 x 70 x 188mm
- Weight: 2.18kG

On Package:
- 1 Amplifier Taramps MD 1800.1 1 OHM
- Manual
- Sticker
