Stetsom Amplifier hl800.4 1ohm 800 Watts
Stetsom Amplifier hl800.4 1ohm 800 Watts
Preço normal
$249.00 USD
Preço normal
Preço promocional
$249.00 USD
Preço unitário
/
por
Tributo incluído.
Frete calculado no checkout.
Não foi possível carregar a disponibilidade de retirada.
STETSOM HL800.4 900 WATTS RMS 1 OHM RCA 4 CHANNELS AUTOMOTIVE SOUND
Developed for those looking for high performance and sound fidelity in automotive amplifiers ...
… The HL800.4, is a 900W RMS in 1 Ohm product, with 4 226W RMS CHANNELS and great installation versatility.

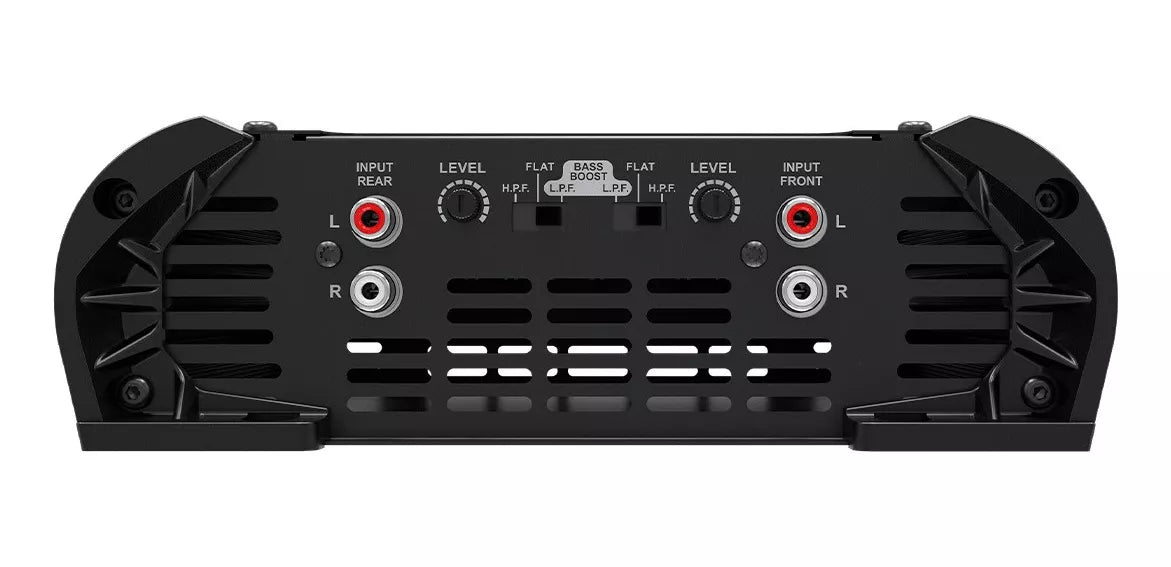

It has independent features on the Front and Rear channels such as LEVEL to adjust the level of the input signal and Crossover, allowing you to choose between actuation in LOW-PASS, HIGH-PASS or FLAT (FULL-RANGE).
TIPS ON HOW IT CAN BE INSTALLED:
- 16 tweeters / drivers (horns) 4 in parallel per channel.
- 2 channels in Bridge of 400W in 4 Ohms (Front, Rear).
- 3 channels, two independent of 200W and one in Bridge of 400W.
- Tri-mod mode with a 4 Ohm speaker in bridge + 2 horns or 2 super twitters per channel.
Details
Stetsom's new HL (High Line) line is characterized by its high performance and sound fidelity.
The HL model products have a totally wide frequency response, with perfect tones in both low, medium and crystal highs.
The Stetsom HL800.4 Channel Digital Amplifier Module - 900 Watts RMS - 2 Ohms is great for playing a sound system with bass up to 500 Watts RMS or even used for mid and treble in more complex 3 or 4 way systems.
Additional Information
Availability Immediate dispatch
Module Application For light internal sound
Bass Boost, Bass Boost Yes
Channels 4 Channels Stereo
Class of Operation Digital
Class D
RCA connections 4
Maximum musical consumption (A) 44
Maximum sinusoidal consumption (A) 88
HPF Filter, High Pass Yes
HPL Filter, Low Pass Yes
Frequency Response (Hz) 10Hz - 26000Hz
Impedance Ω 1 Ohm
Accepts Bridge Yes
Bridge impedance Ω 2 Ohms
Led Clip Yes
Actual Power per Channel (Watts RMS) 260
Real Power per Channel with Double Impedance (Watts RMS) 520
Total Real Power (Watts RMS) 1040
Actual Power per Bridge (Watts RMS) 520
Signal-to-noise ratio (dB) 90
Protection systems High Voltage Short Circuit
Heating
at Output
Input Voltage 12V
THD (Total Harmonic Distortion) 0.4%
Approximate Product Weight (kg) 1.70
Included Items
1 Stetsom HL800.4 Channel Digital Amplifier Module - 1040 Watts RMS - 1 Ohm Manual Screw
Box
Warranty
12 months
