Product Information

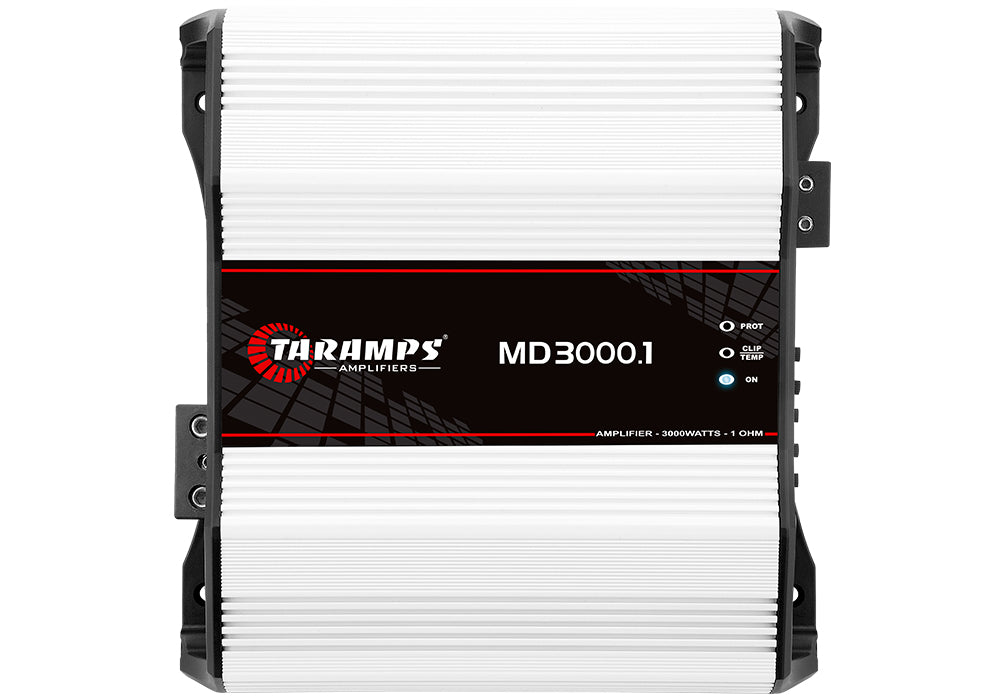

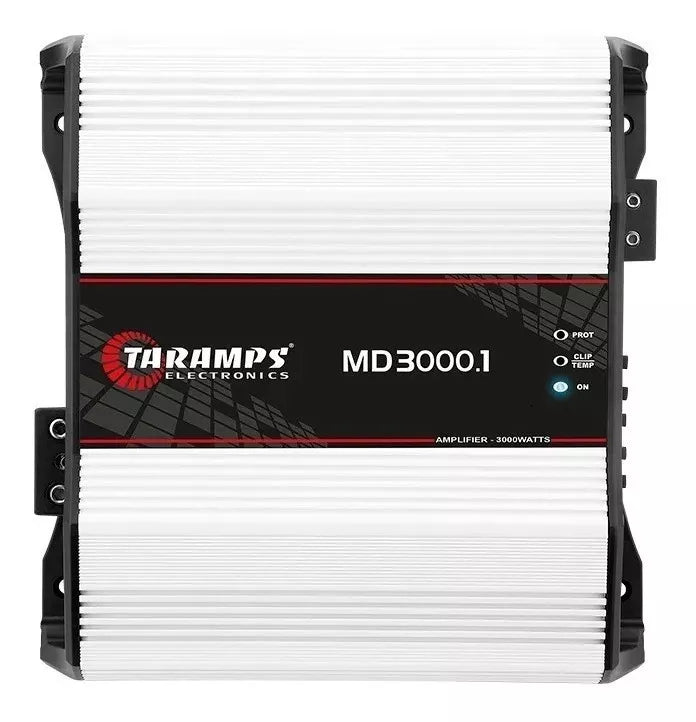

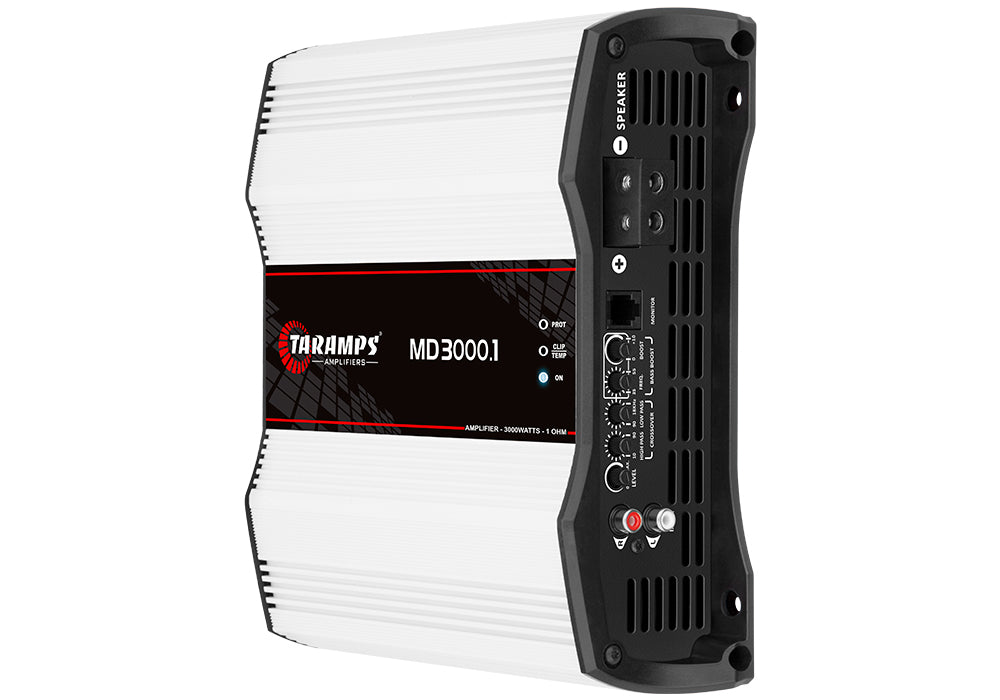

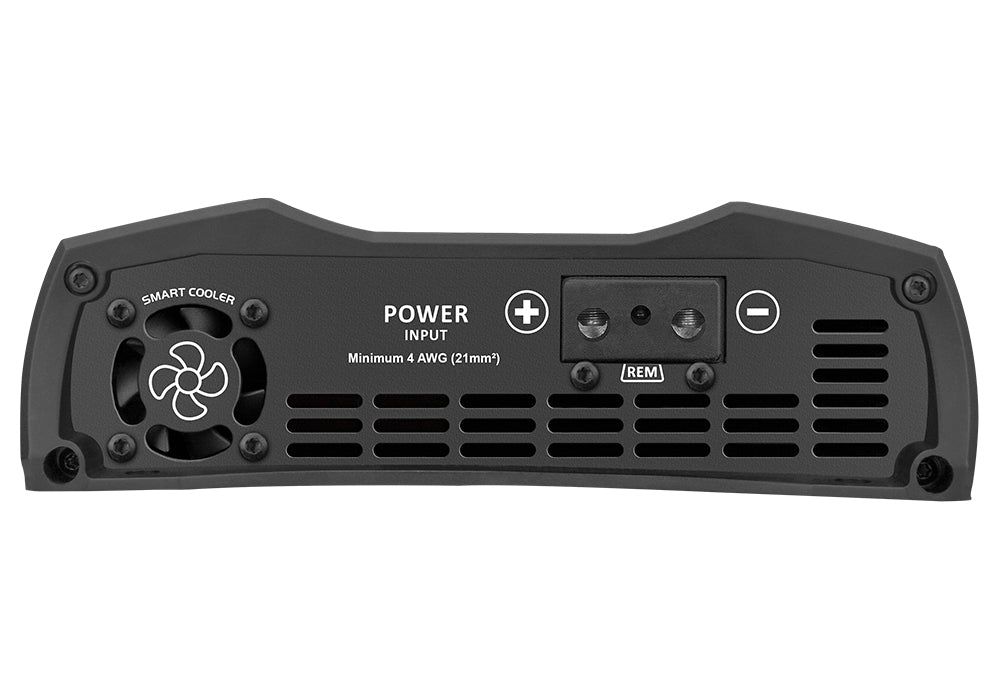

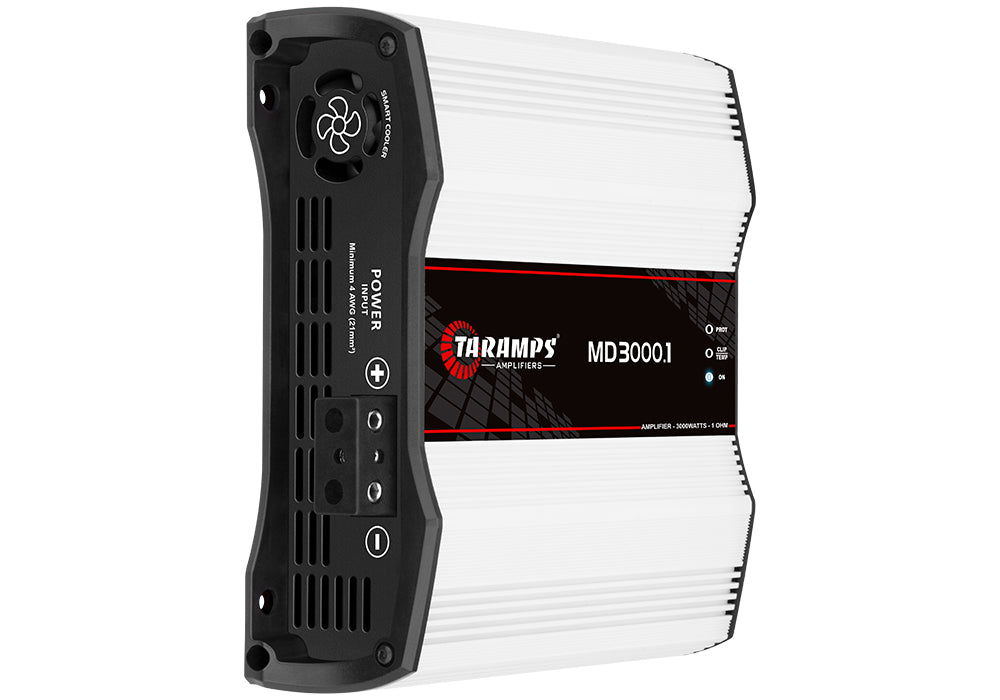

Taramps MD 3000.1 - 3000W | 1 OHM
The MD 3000.1 1 OHM amplifier module, is carefully designed with the highest technology, and high performance for automotive sound systems. It is a mono amplifier and its maximum power is 3000W RMS with 1 OHM impedance, and one 3000W RMS channel. The MD 3000 is FULL RANGE this way you appreciate all the frequencies in the right measure.
Technical specifications:
- Operation Class: D
- Number of Channels: 01
- Maximum Power:
@ 12.6 VDC - 1 OHM: 3000W RMS
@ 12.6 VDC - 2 OHMS: 1920W RMS
- Input Sensitivity: 220mV
- Signal to Noise Ratio: >90dB
- Frequency Response: (Full Range): 10Hz to 18KHz (-3dB)
- Crossover High Pass (HPF): Variable: 10Hz to 90Hz (-12dB / 8th)
- Crossover Low Pass (LPF): Variable: 90 Hz to 18kHz (-12dB / 8th)
- Bass Bost: 35Hz to 55Hz, 0 to 10dB(50Hz)
- Input Impedance: 22K OHMS
- Protection System: Short-Circuit to Output, Short on output compared to GND, Low impedance at output, low/high supply voltage and Thermal protection
- Maximum Supply Voltage: 16 VDC
- Consumption at rest: 1.00A
- Maximum Musical Power: @ 12.6 VDC: 150A
- Rated Power Consumption: 300A
- Dimensions(W x H x D): 228 x 70 x 218mm
- Weight: 2.5 kg
On Package:
- 1 Amplifier Taramps MD 3000.1 1 OHMS
- Manual
- Sticker
