Banda Viking 8000 2ohm 1 channel

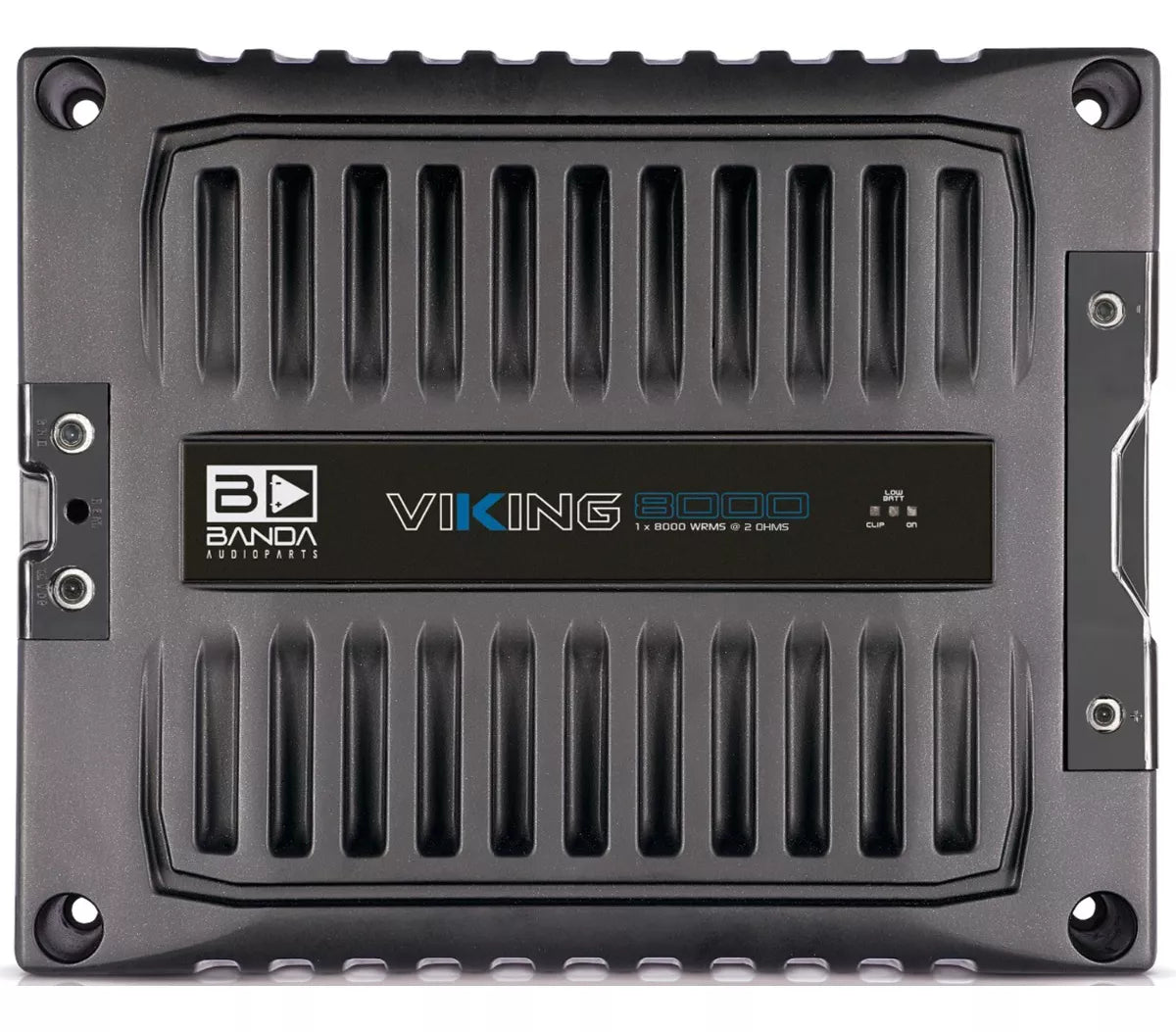

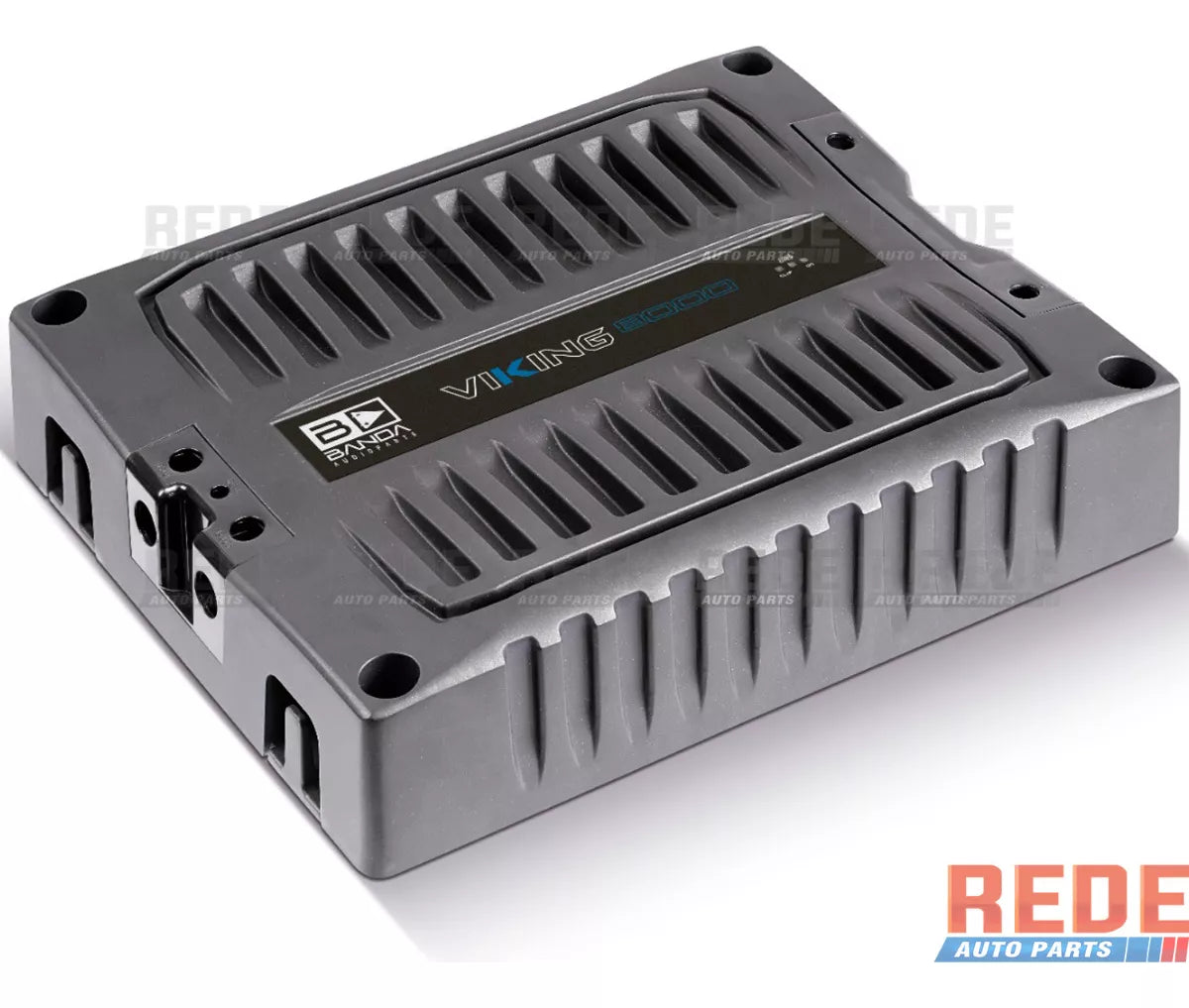

VIKING AMPLIFIER MODULE 8000 @ 2 OHMS

The VIKING Line is intended for those who are really looking for a powerful sound. In this line we have some models that stand out in major championships worldwide.

The Viking 8000 offers 8000Wrms in 1 channel at 2 Ohms, used for large projects as it is a high performance amplifier, has a frequency response of (16Hz - 7kHz) and can be used to play several types of speakers.

It also features a 100% aluminum chassis that offers better heat dissipation, resulting in low battery consumption and great performance.

Technical specifications

- Class of operation: Class D

- Maximum Power 12.6v @ 2 Ohms: 8000 WRMS

- Max Power 12.6v @ 4 Ohms: 5100 WRMS

- Max Power 14.4v @ 2 Ohms: 9500 WRMS

- Max Power 14.4v @ 4 Ohms: 6800 WRMS

- Efficiency @ 4 Ohms: 88%

- Efficiency @ 2 Ohms: 79%

- Input Voltage: 9 - 15V

- Input Impedance: 22K Ohms

- Total Harmonic Distortion + Noise: ~3%

- Input Sensitivity: 200mV to 8V

- Signal Noise Ratio: 80dBs

- Frequency Response: 16 to 7kHz (-3dBs)

- HPF (Subsonic): 16 - 120Hz @ 12dB/octave Linkwitz-Riley

- LPF (Crossover): 50 - 7kHz @ 12dB/octave Linkwitz-Riley

- Bass Boost (Variable): 30 - 80hz at up to 12dB

- Recommended fuse: 2 x 225 A

- Standby Current: ~3A

- Maximum current (musical signal): 400A

- Sinusoidal current: 850A

- Power Cables (recommended min.): 70mm / 0 AWG

- Output Cables (recommended min.): 2 x 6mm / 2 x 3 AWG

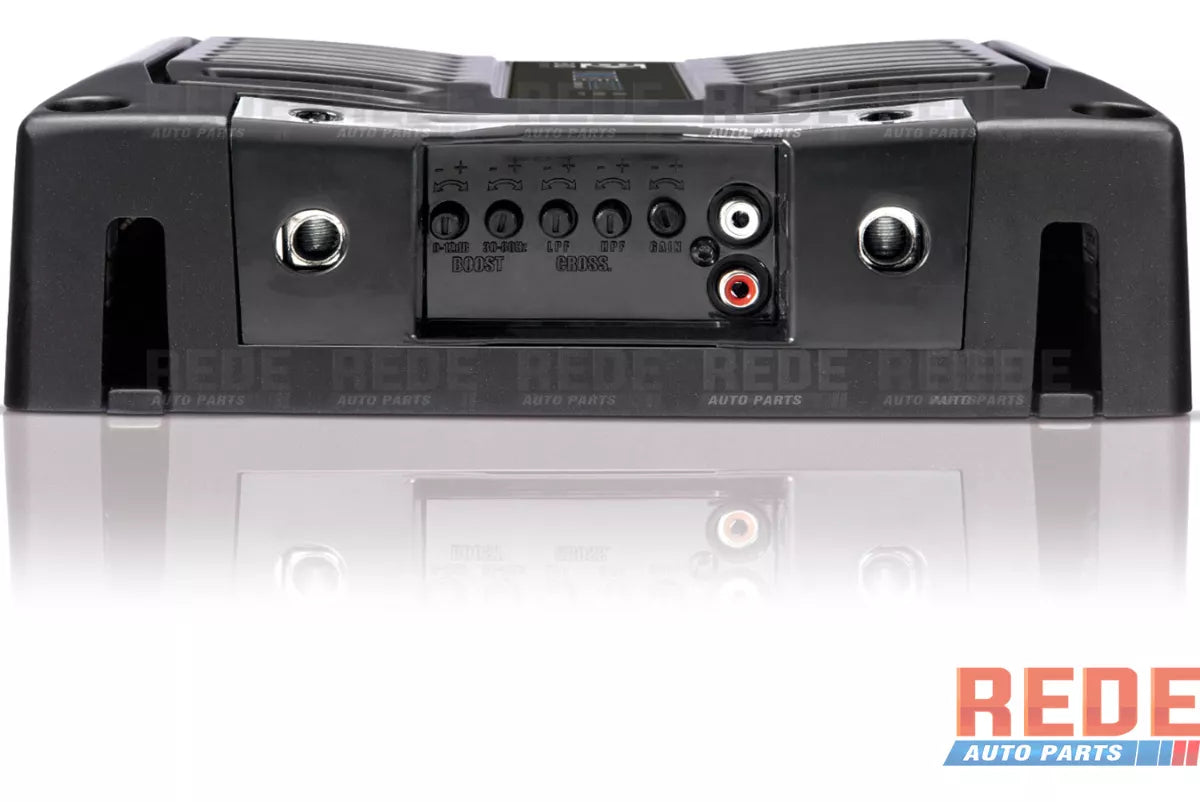

- gain control

- Signal input in differential mode

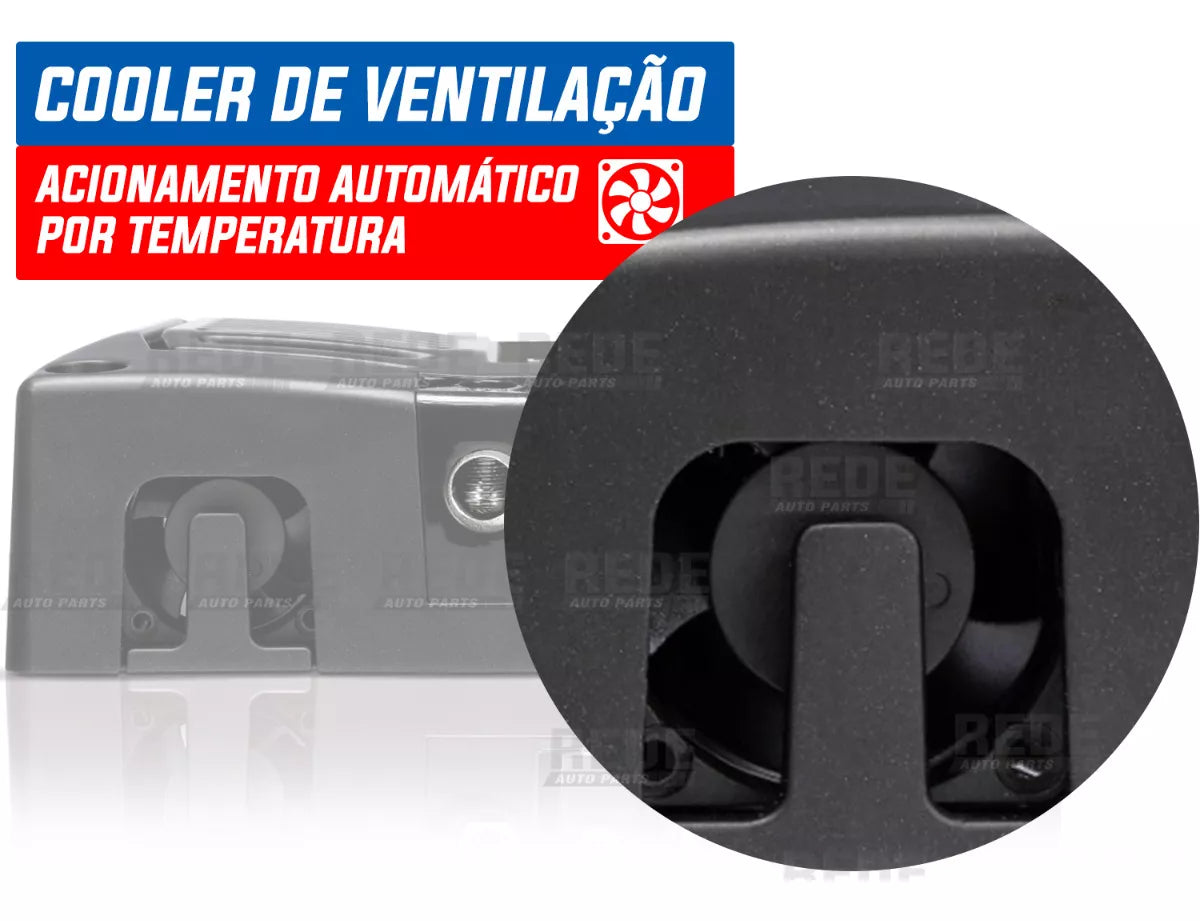

- Forced ventilation through micro fans

- Weight (Kg): 6.3

- Height (mm): 73

- Width (mm): 256

- Depth (mm): 317
