Banda Viking 8000 1ohm Amplifier

Banda Viking 8000 1ohm Amplifier

$679.00 USD
$679.00 USD
Promoção Esgotado
Tributo incluído. Frete calculado no checkout.

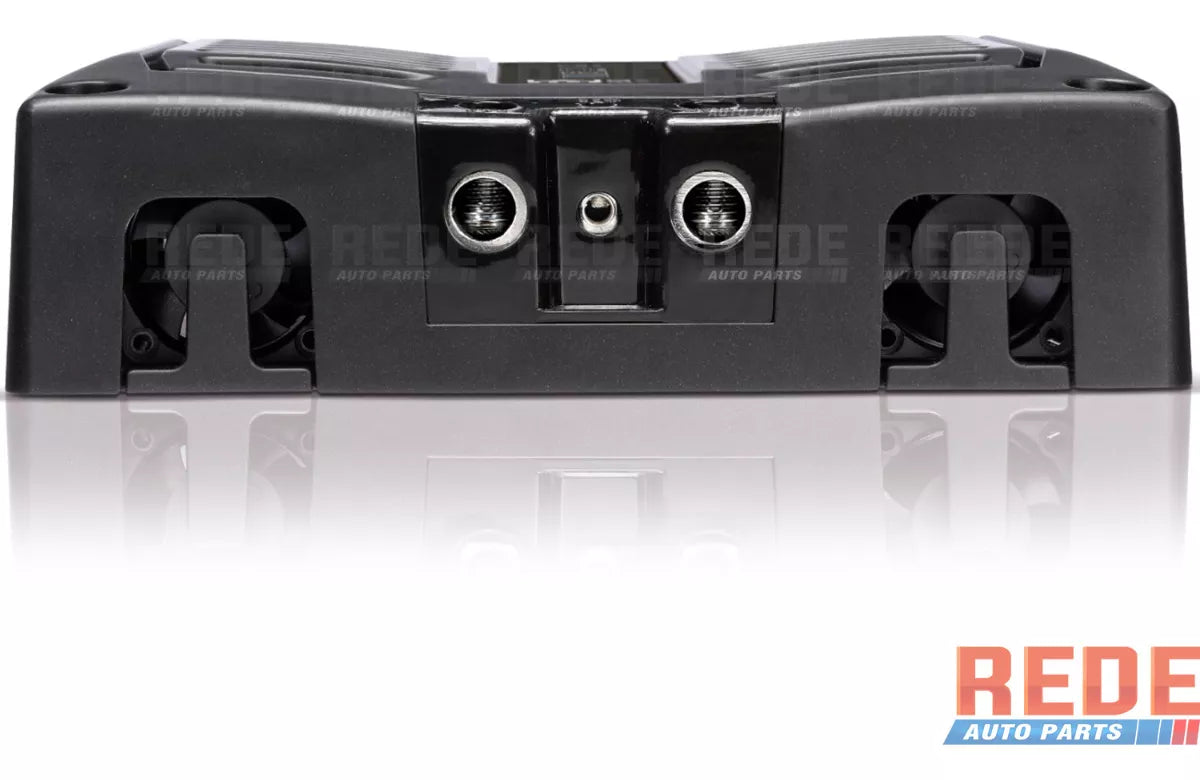

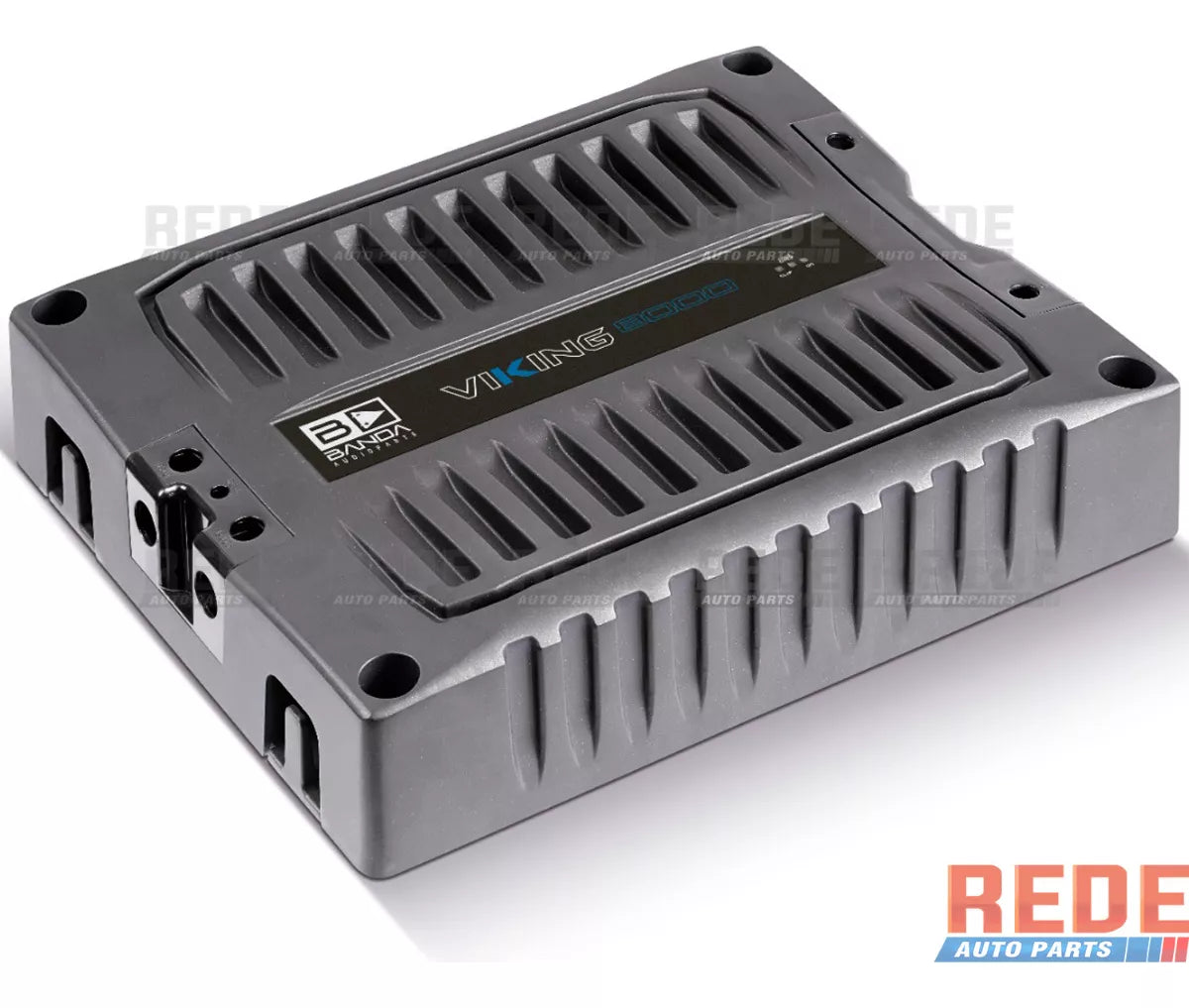

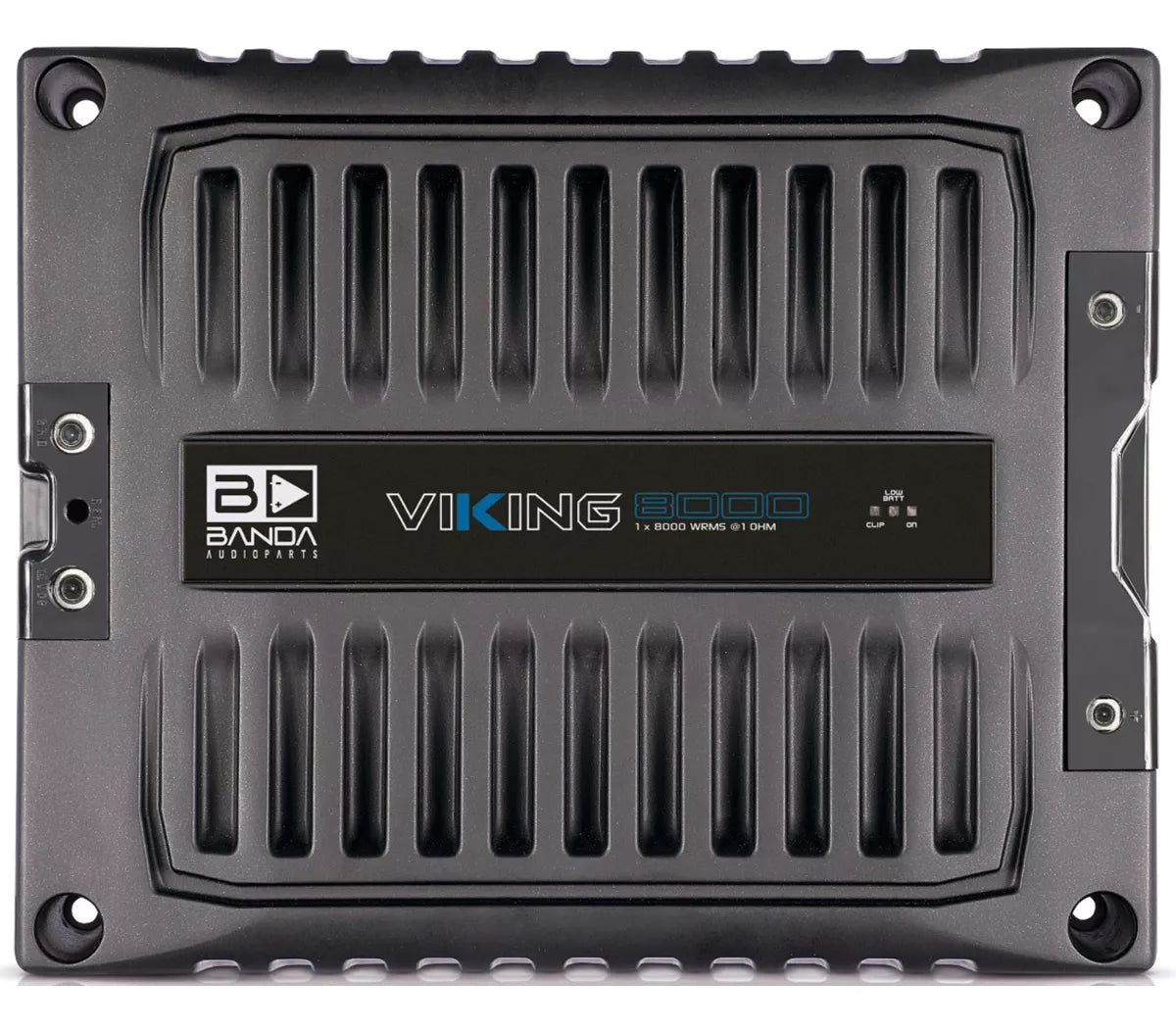

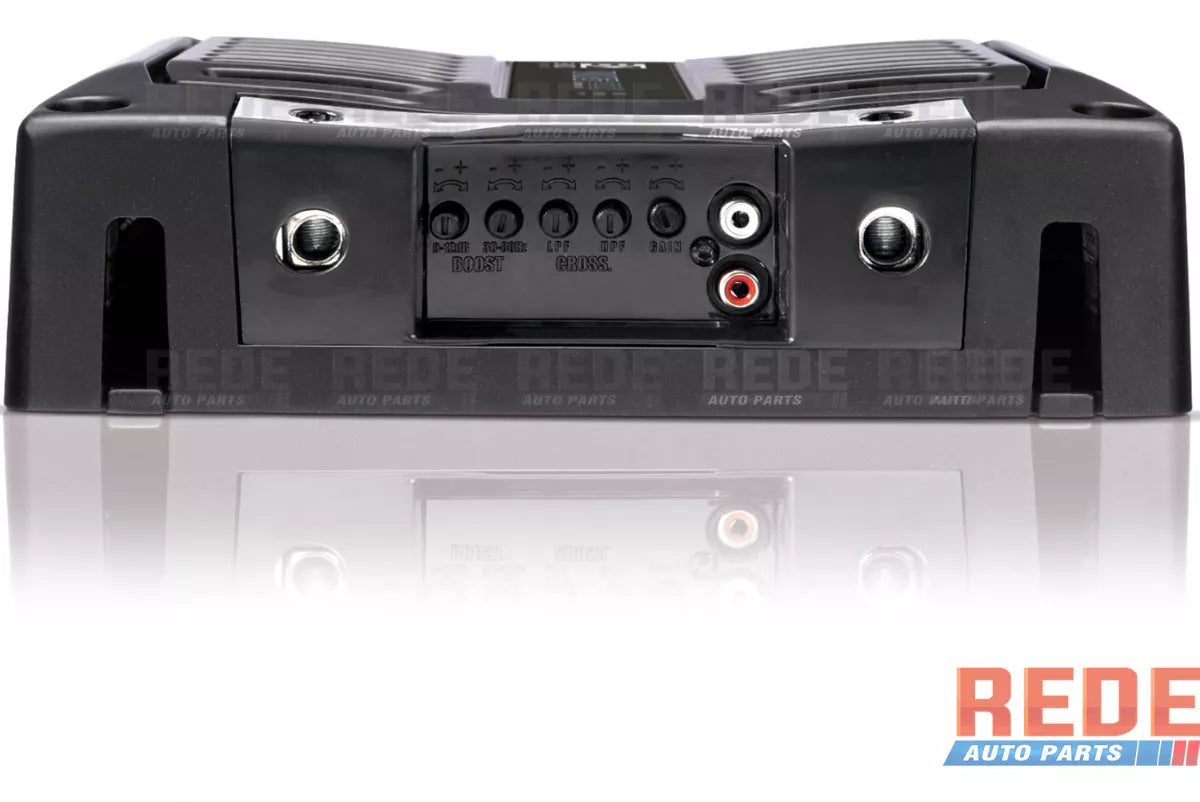

VIKING 8000 1 OHM AMPLIFIER MODULE
The VIKING Line is intended for those who are really looking for a powerful sound. In this line we have some models that stand out in major championships worldwide.

The Viking 8000 offers 8000Wrms in 1 channel at 1 Ohm, used for large projects as it is a high-performance amplifier, has a frequency response of (16Hz - 7kHz) and can be used to play different types of speakers.

It also has a 100% aluminum chassis that offers better heat dissipation, resulting in low battery consumption and great performance.

SPECIFICATIONS
- Class of operation: Class D
- Max Power 14.4v @ 1 Ohm: 9000 WRMS
- Max Power 14.4v @ 2 Ohms: 7400 WRMS
- Max Power 12.6v @ 1 Ohm: 8000 WRMS
- Max Power 12.6v @ 2 Ohms: 5100 WRMS
- Efficiency @ 2 Ohms: 83%
- Efficiency @ 1 Ohm: 77%
- Input Voltage: 9 - 15V
- Input Impedance: 22K Ohms
- Total Harmonic Distortion + Noise: =~3%
- Input Sensitivity: 200mV to 8V
- Signal to Noise Ratio: 80dBs
- Frequency Response: 16 to 7kHz (-3dBs)
- HPF (Subsonic): 16 - 120Hz @ 12dB/octave Linkwitz-Riley
- LPF (Crossover): 50 - 7kHz @ 12dB/octave Linkwitz-Riley
- Bass Boost (variable): 30 - 80Hz at up to 12dB
- Recommended fuse: 2 x 225 A
- Resting Current: =~3.0A
- Maximum Current (musical signal): 400A
- Maximum Current (sine signal): 850A
- Power Cables (recommended min.): 70mm / 0 AWG
- Output Cables (recommended min.): 2 x 6mm / 2 x 3 AWG
- gain control

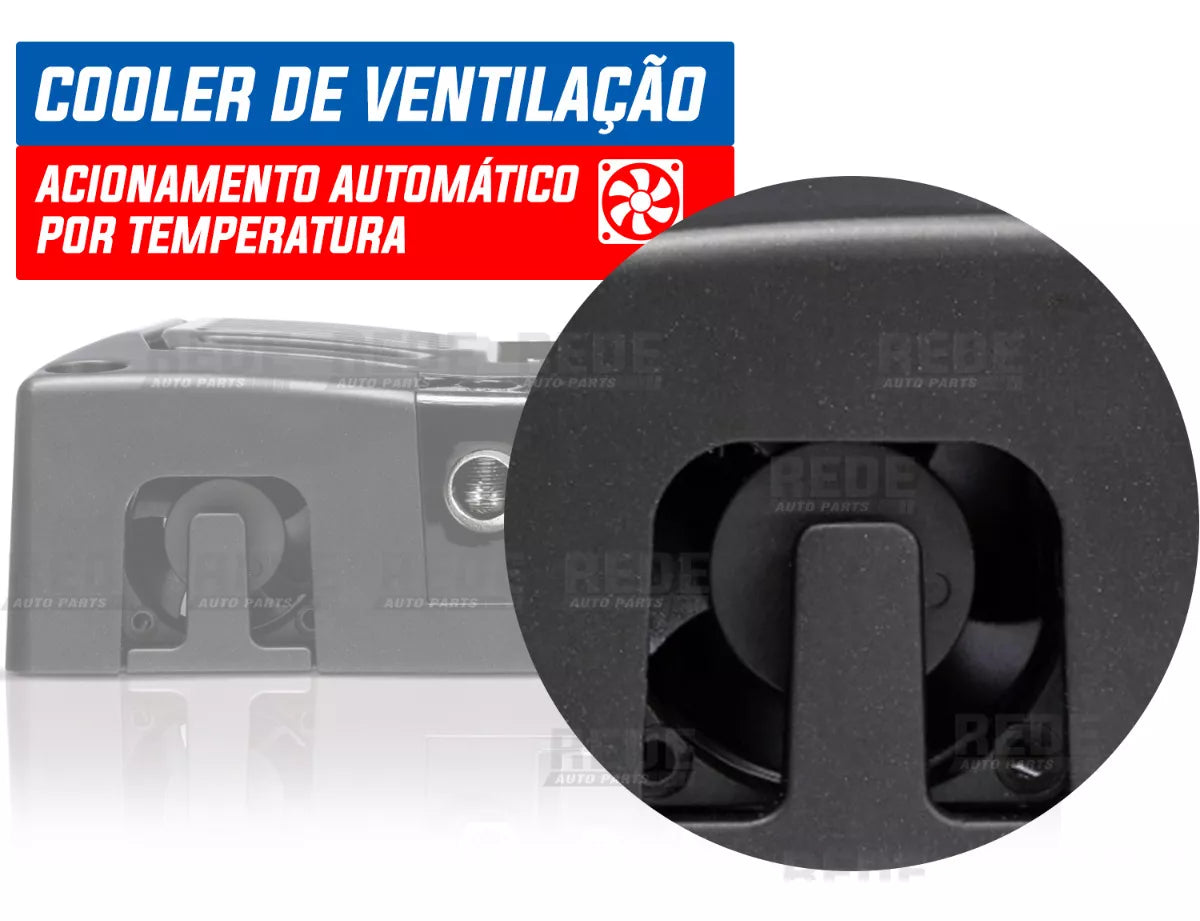

- Forced ventilation through micro fans
- Weight (Kg): 6.3
- Height (mm): 73
- Width (mm): 256
- Depth (mm): 317
