Banda Audioparts

Banda Amplifier Module Banda Electra Bass 3k1

Banda Amplifier Module Banda Electra Bass 3k1

$379.99 USD
$429.00 USD $379.99 USD
Promoção Esgotado
Tributo incluído. Frete calculado no checkout.

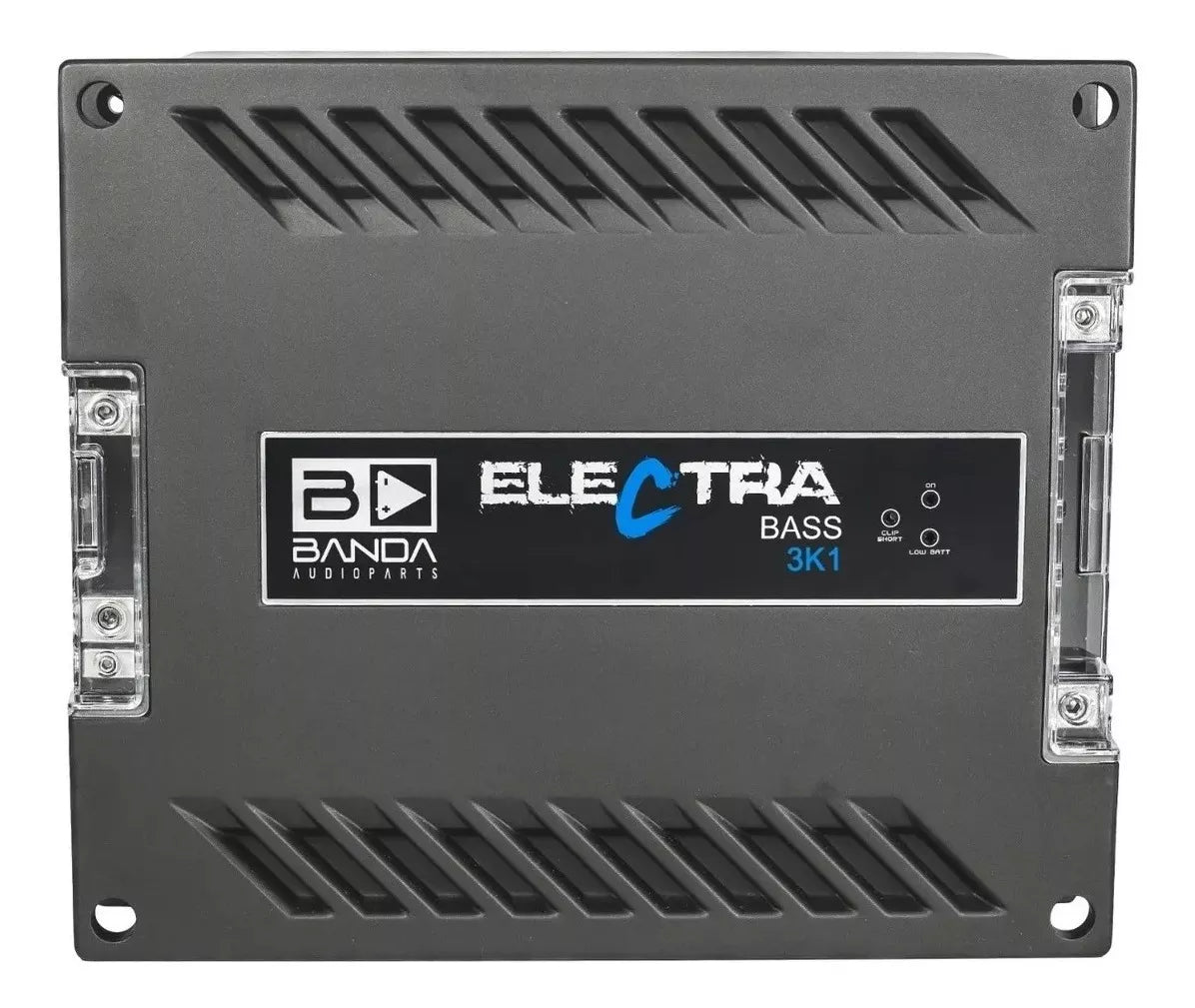

BANDA ELECTRA BASS 3K1 3000 WRMS 1 OHM



Amplifier Module Banda Electra Bass 3k1 3000 Wrms 1 Ohm

The Electra Bass Line was developed specifically to meet those in love with a serious bass. Unlike other lines, it has a state-of-the-art bass and subwoofer specific frequency response, which has reached an impressive bass level with a frequency response of 5Hz to 500Hz.
The Electra Bass 3k1 offers 3000Wrms in 1 channel at 1 Ohm, because it has a very good frequency response (5Hz to 500Hz). It is a great product for projects where good bass and subwoofer searching can be used in subwoofers and woofer. It also has control of Bass Boost, Subsonic, Side Gain and Crossover, has a 100% aluminum chassis and micro fans with automatic temperature control.

Technical specification:
• Model Electra Bass 3k1
• 1 Channel 3000Wrms @ 1 Ohm - 12.6Vdc
• 1 Channel 2000Wrms @ 2 Ohms - 12.6Vdc
• 1 Channel 3700Wrms @ 1 Ohm - 14.4Vdc
• Full Power Consumption Current: 155A (Medium Musical Program)
• Active Crossover LINKWITZ-RILEY Variable from 17Hz to 500Hz (12dB / octave)
• Minimum Output Impedance: 1 Ohm
• Input Impedance: 47K Kohms
• Frequency Response (Cross ON Switch): 17Hz to 500Hz (-3dB)
• Frequency Response (Cross OFF Switch): 5Hz to 500Hz (-3dB)
• Variable Subsonic Filter: 17Hz to 120Hz
• Clipping Indicator: 5% Distortion
• THD: Less than 0.08%
• Signal Ratio Noise:> 81.5dB (100Hz)
• Damping Factor:> 103
• Input Sensitivity: 22mV - 10V (100Hz)
• Gain Adjustment (Input Sensitivity)
• Bass Boost: 45Hz @ 0 to + 18dB
• Signal Input in Differential Mode
• Micro Fans with Temperature Control System
• Thermal protection
• Short Circuit Protection
• Features RCA Input
• Class D amplifier
• Blue LED Source Indicator and Amplifier On / ON
• Red LED Clipping, Short Circuit and Thermal Protection Indicator
• Yellow LED Battery Voltage Indicator Below Specified
• Approximate Dimensions (LxWxH): 26.2x31x6.2cm

Package content:
• 01 Amplifier Module
• Manual and Warranty Certificate


Ver informações completas
