Banda Electra 8k 2ohm 8000watts

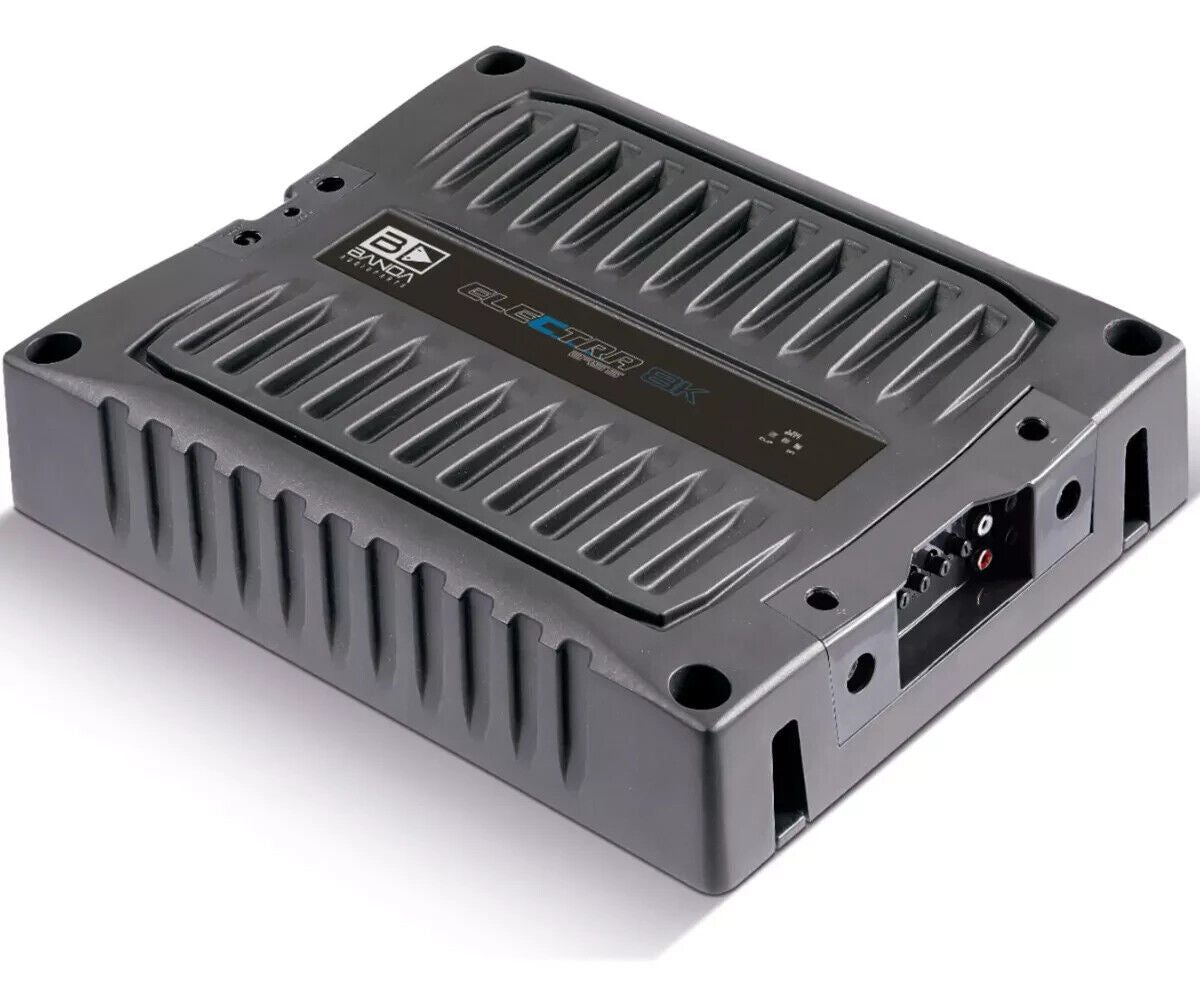

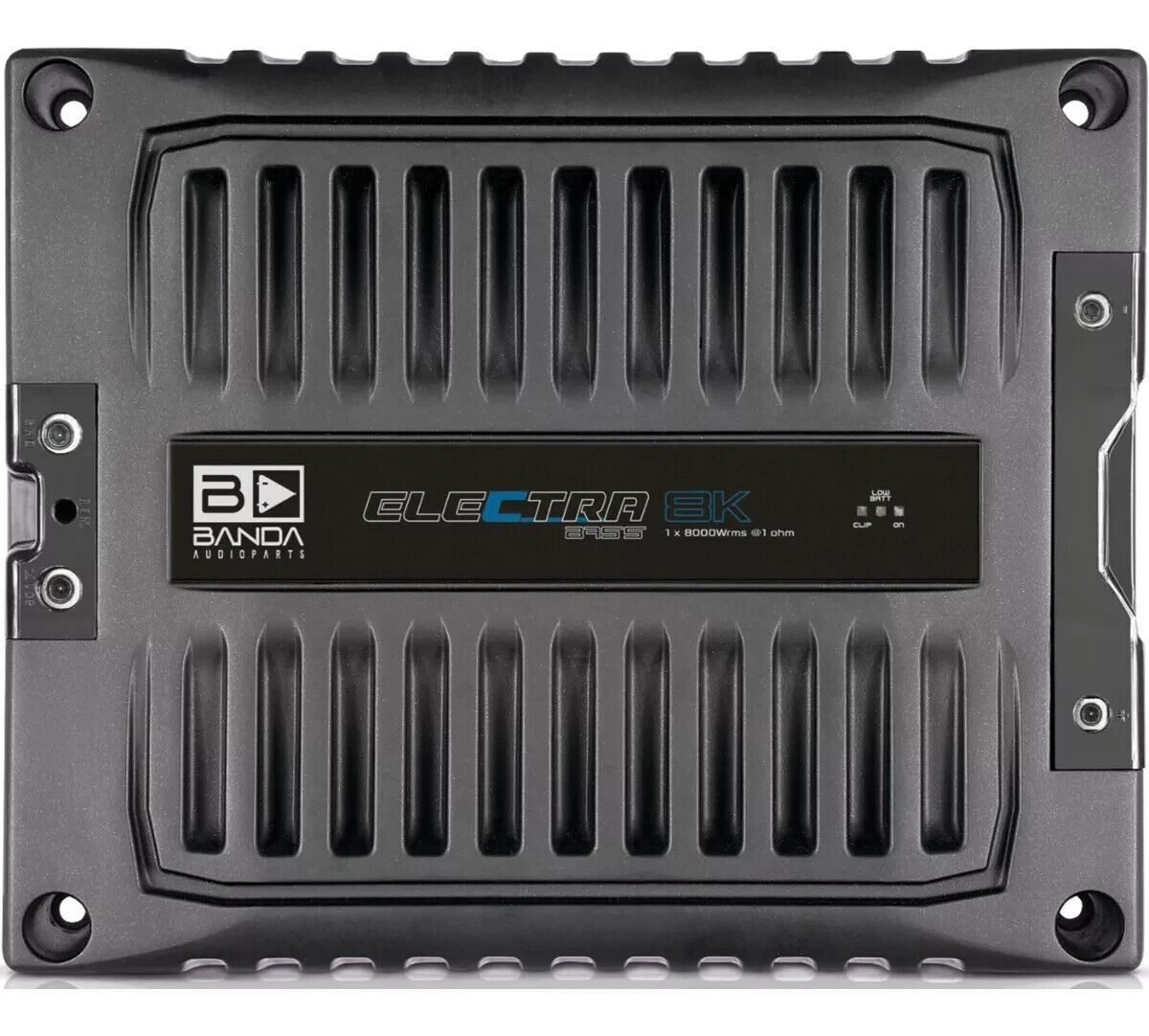

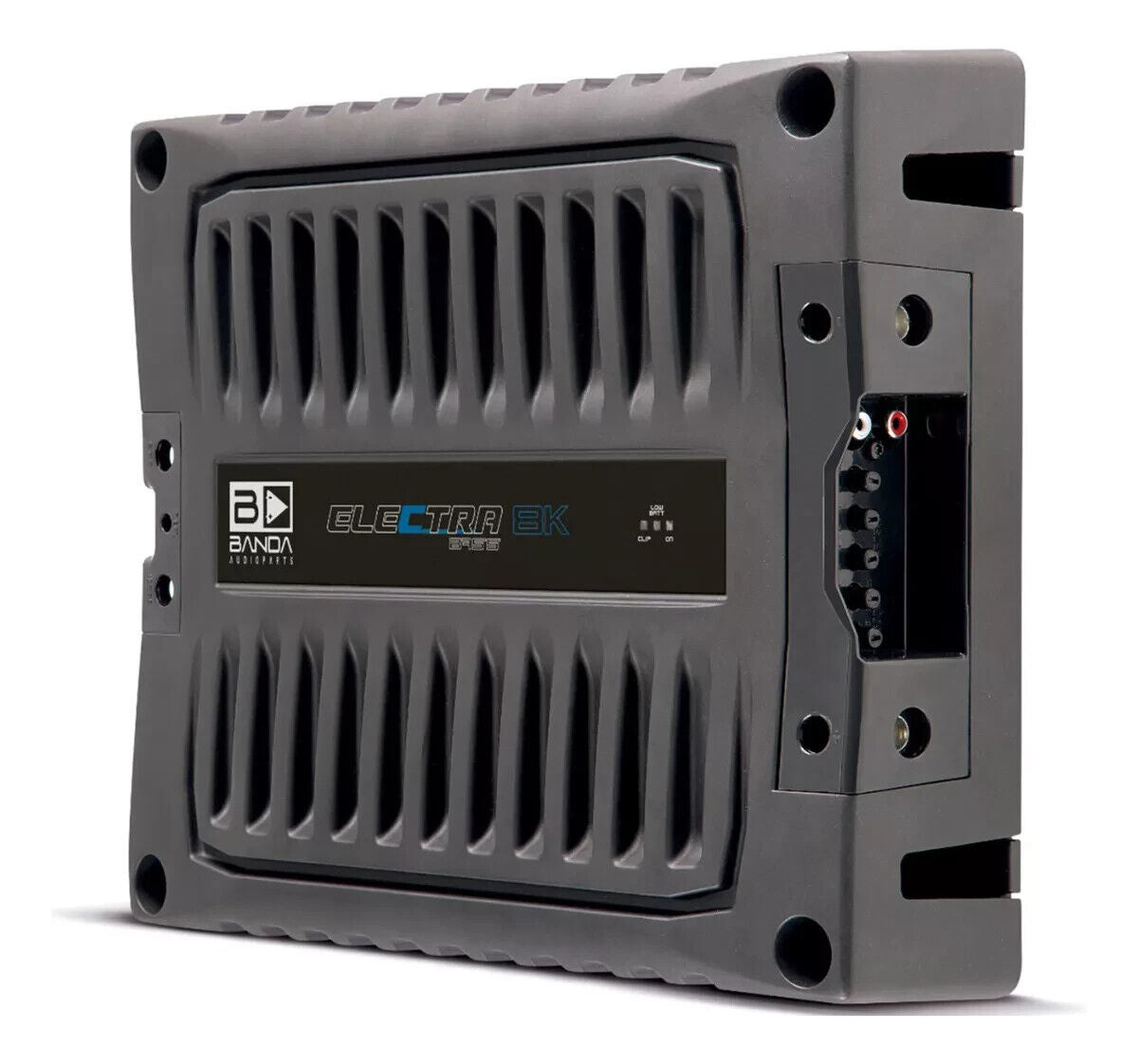

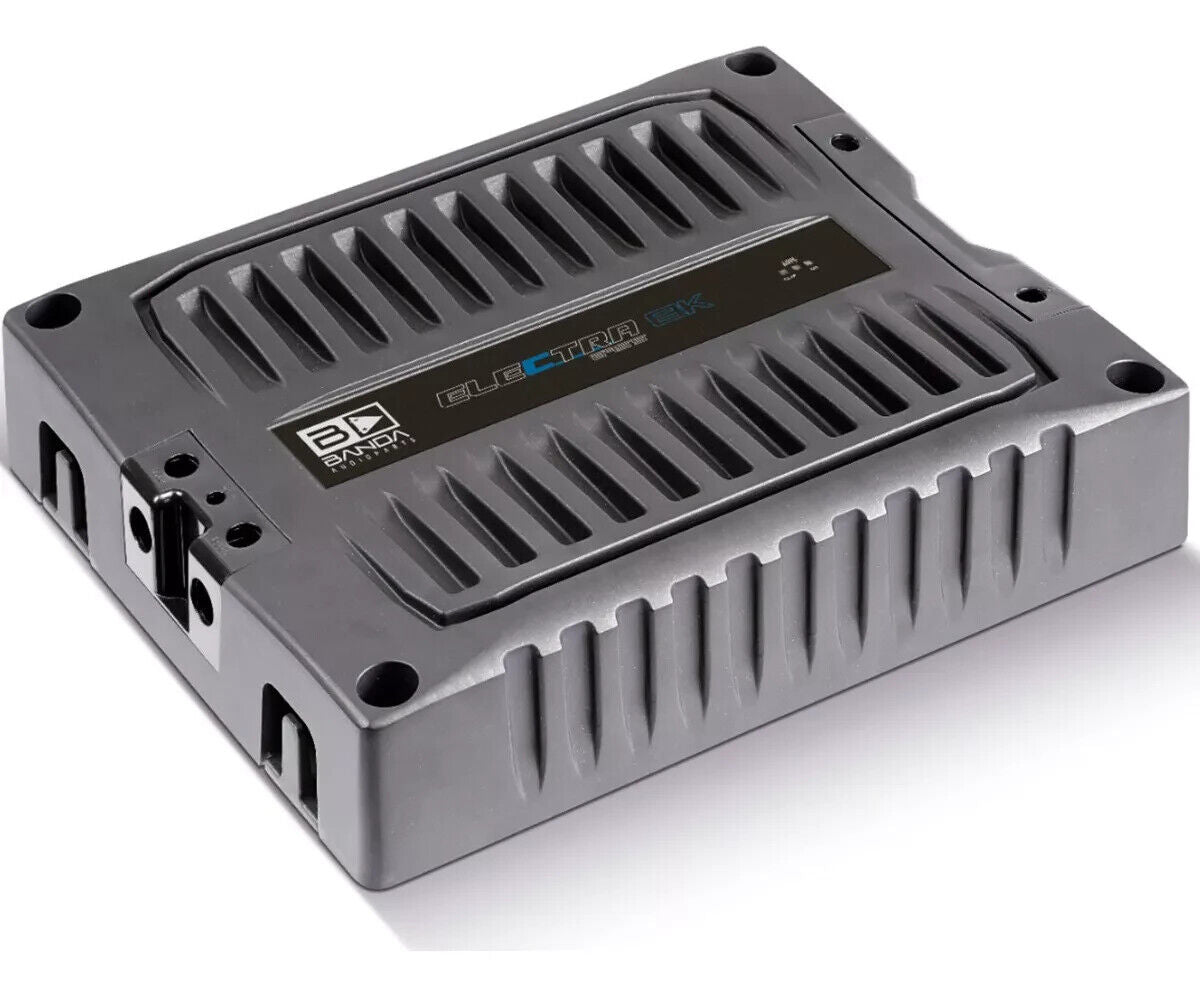

ELECTRA 8K  2 OHMS AMPLIFIER MODULE

The ELECTRA line was developed especially for those looking for incomparable bass. It has a frequency response of 16 to 500Hz. Because of this, ELECTRA will only play Subwoofers, Bass. The variable BASS BOOST feature 30 - 80hz at up to 12dB is a differentiator, further reinforcing the bass of your system.

Designed in a bold 100% aluminum chassis, it works with 8000 WRMS power with 1 input channel for connection and 2 Ohms impedance. It has very low harmonic distortion and clipping indicator, forced ventilation and protection against short circuit.

TECHNICAL SPECIFICATIONS

- Maximum Power 14.4v @ 2 Ohm: 9500 WRMS

- Max Power 14.4v @ 4 Ohms: 6800 WRMS

- Maximum Power 12.6v @ 2 Ohm: 8000 WRMS

- Max Power 12.6v @ 4 Ohms: 5100 WRMS

- Efficiency @ 4 Ohms: 88%

- Efficiency @ 2 Ohms: 79%

- Input Voltage: 9 - 15V

- Input Impedance: 100K Ohms

- Maximum Power THD: <3%

- Input Sensitivity: 200mV to 8V

- Signal Noise Ratio: 80dBs

- Frequency Response: 16 to 500Hz (-3dBs)

- HPF (Subsonic): 16 - 120Hz @ 12dB/octave Linkwitz-Riley

- LPF (Crossover): 50 - 500Hz @ 12dB/octave Linkwitz-Riley

- Variable Bass Boost: 30 - 80hz at up to 12dB

- Recommended Fuse: 2 x 225A

- Standby Current: ~3A

- Maximum current (musical signal): 400A

- Maximum current (sinusoidal signal): 850A

- Power Cables (recommended min.): 70mm / 0 AWG

- Output Cables (recommended min.): 2 x 6mm / 2 x 3 AWG

- Weight (Kg): 6.3

- Height (mm): 73

- Width (mm): 256

- Depth (mm): 317
