Banda Electra 8k 1ohm 8000watts
Banda Electra 8k 1ohm 8000watts
Preço normal
$579.00 USD
Preço normal
Preço promocional
$579.00 USD
Preço unitário
/
por
Tributo incluído.
Frete calculado no checkout.
Não foi possível carregar a disponibilidade de retirada.

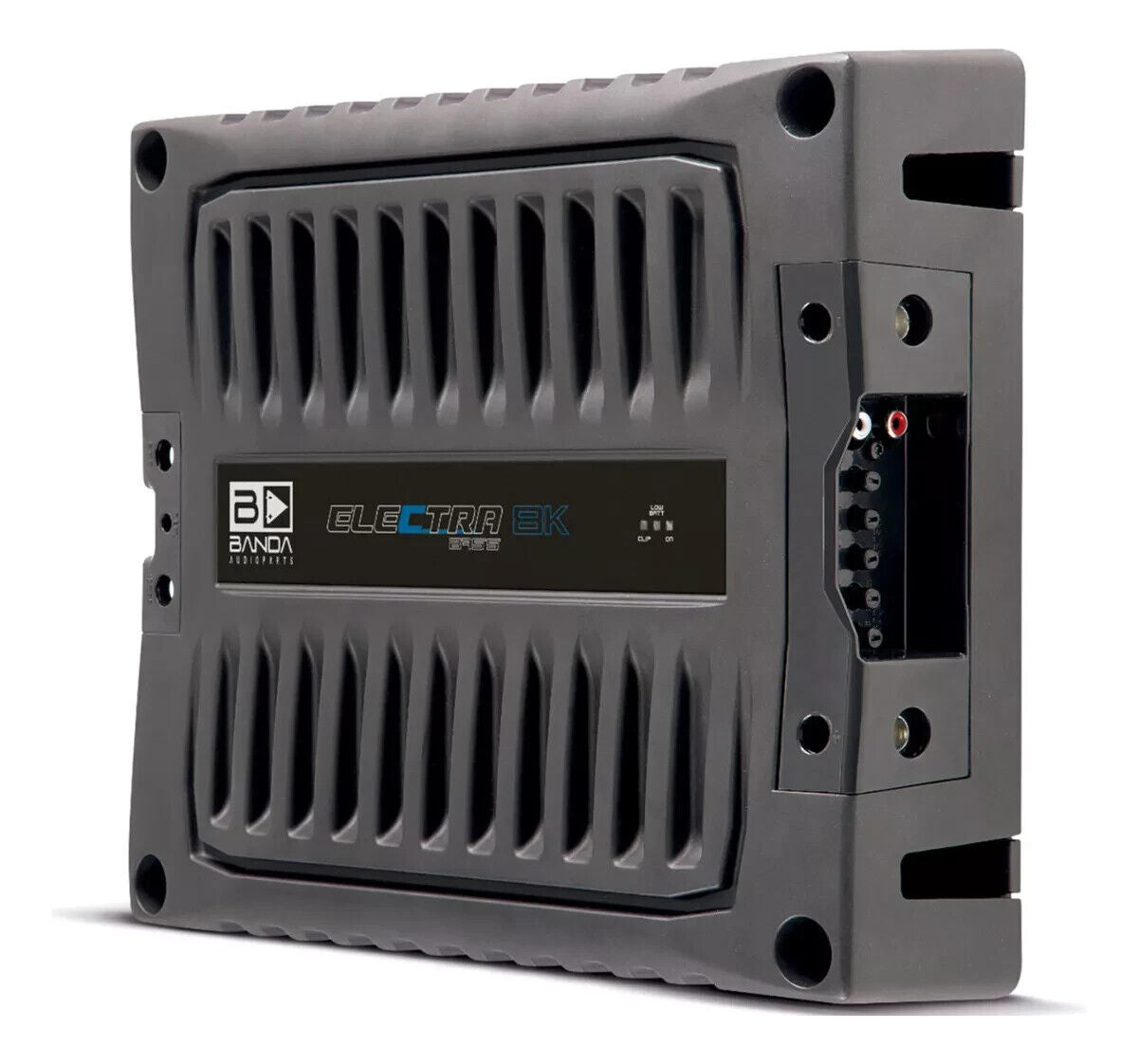

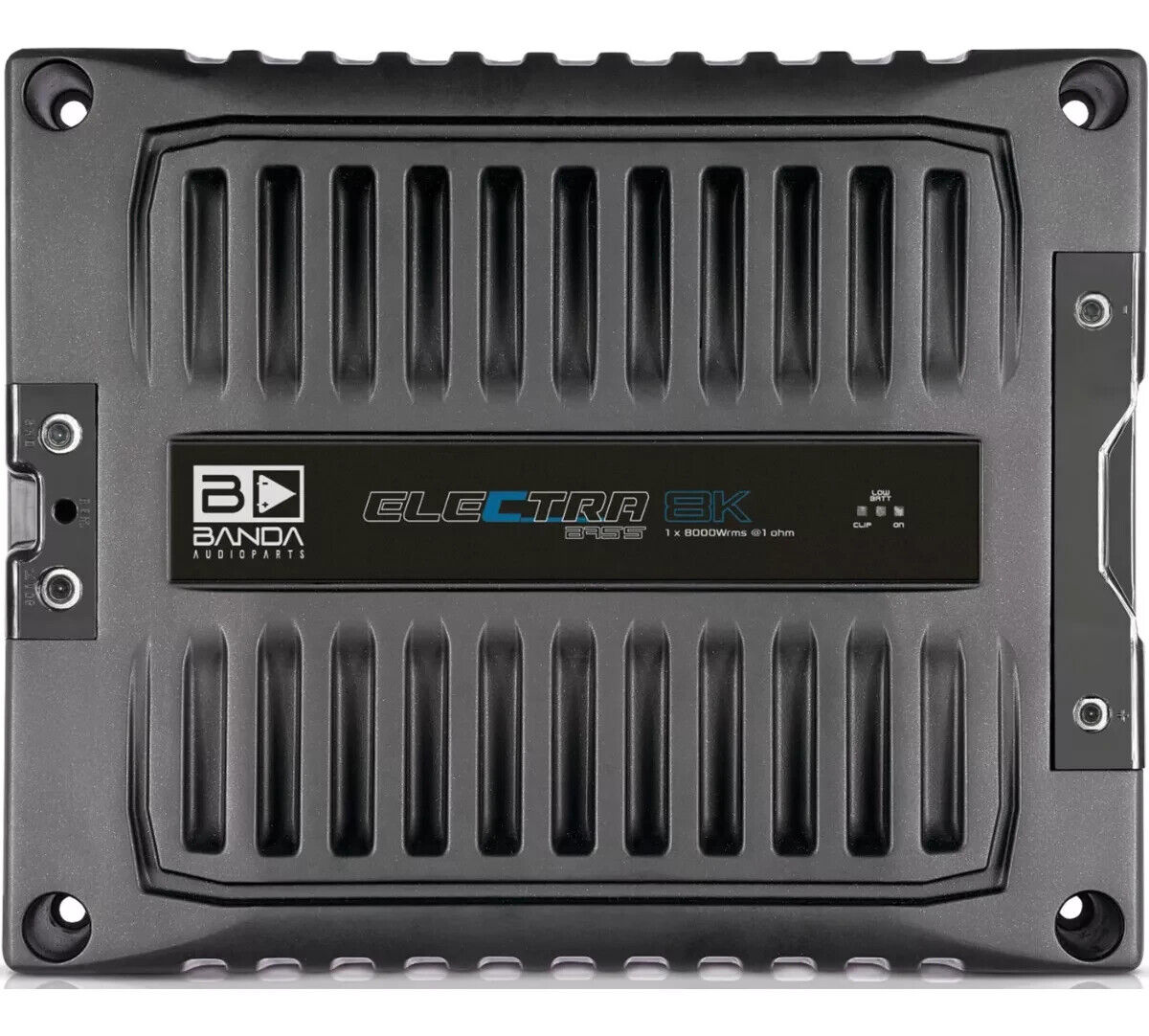

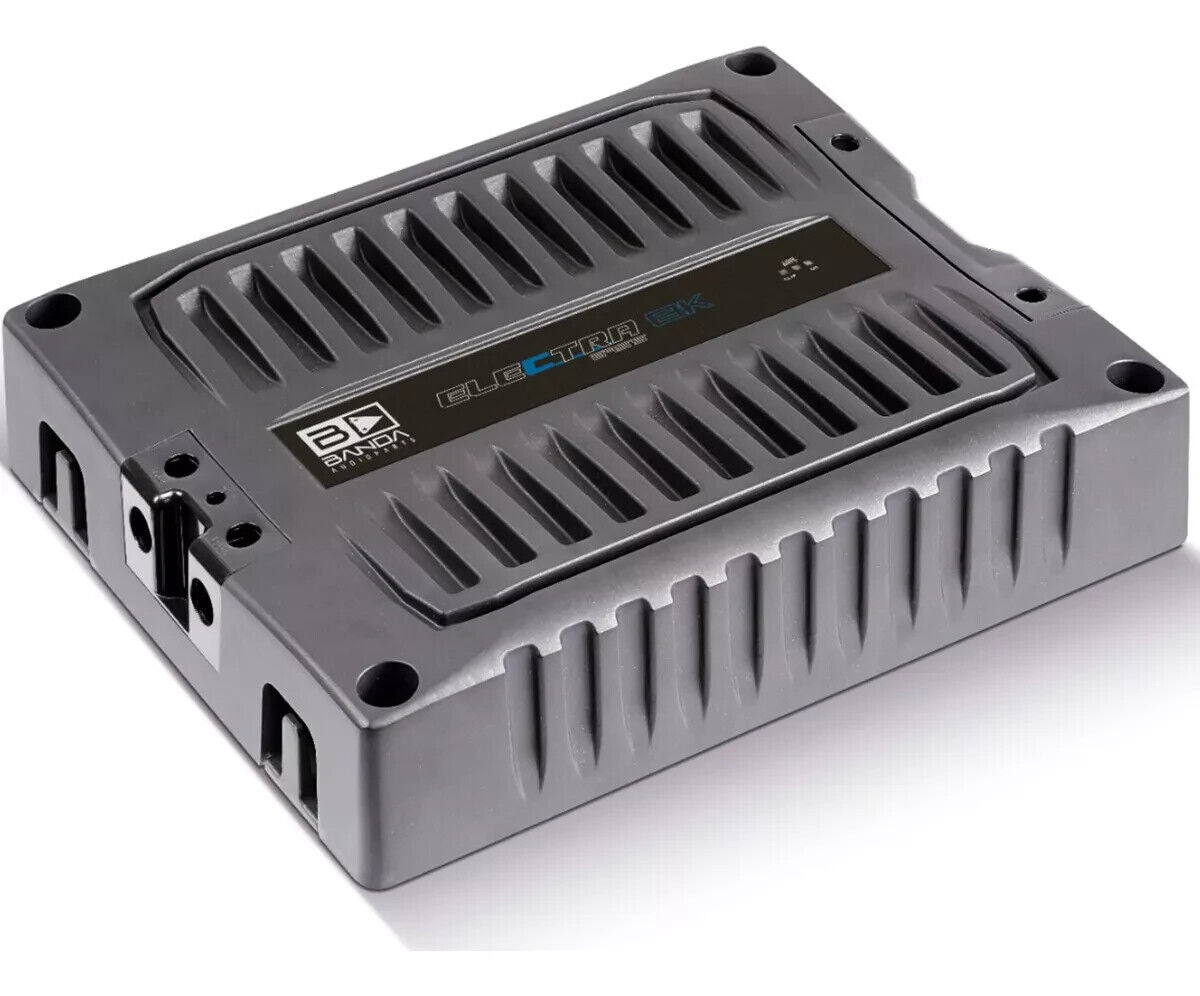

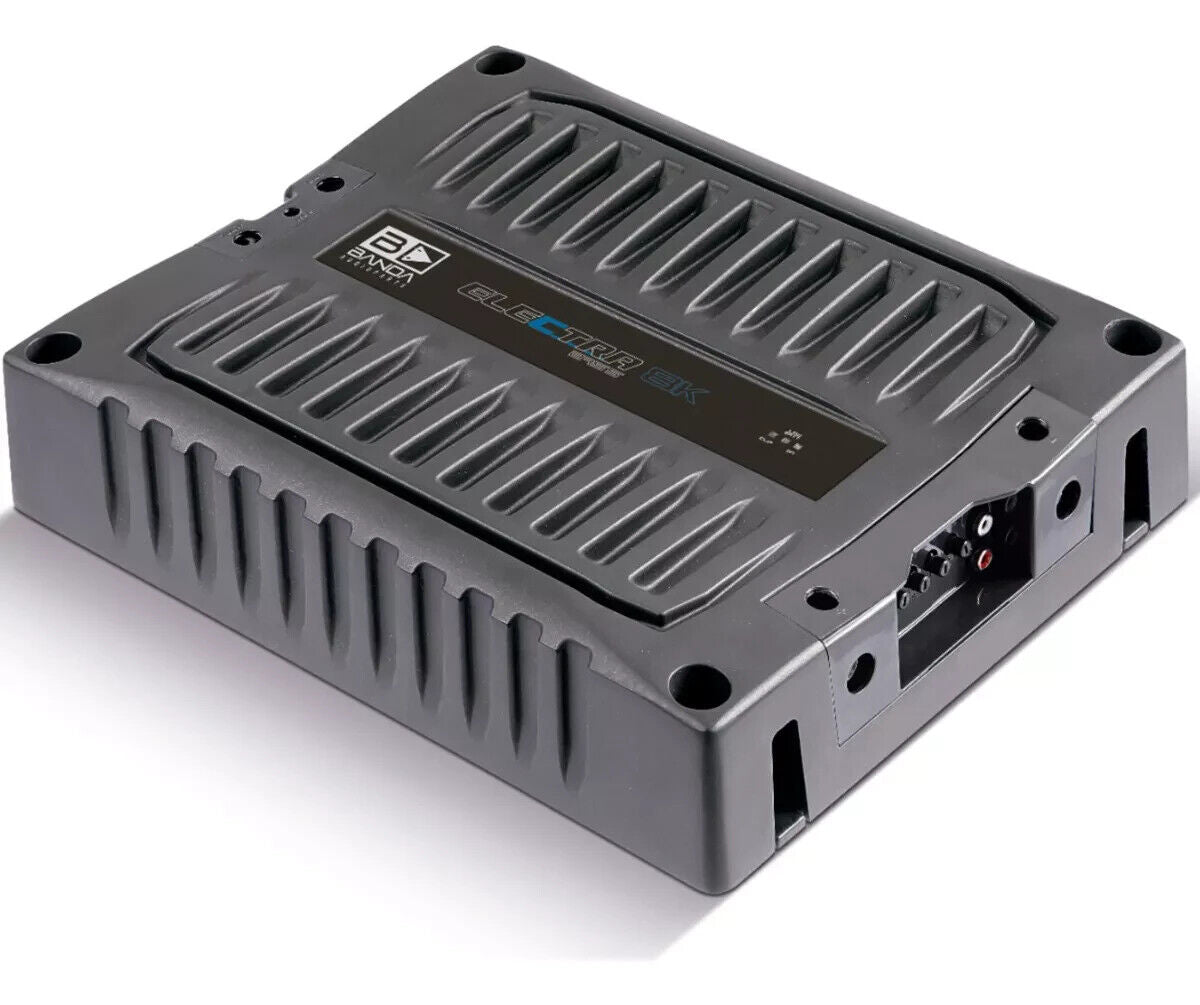

ELECTRA 8K 1 OHM AMPLIFIER MODULE
The ELECTRA line was developed especially for those looking for incomparable bass. It has a frequency response of 16 to 500Hz. Because of this, ELECTRA will only play Subwoofers, Bass. The variable BASS BOOST feature 30 - 80hz at up to 12dB is a differentiator, further reinforcing the bass of your system.
Designed in a bold 100% aluminum chassis, it works with 8000 WRMS power with 1 input channel for connection and 1 Ohm impedance. It has very low harmonic distortion and clipping indicator, forced ventilation and protection against short circuit.
TECHNICAL SPECIFICATIONS
- Max Power 14.4v @ 1 Ohm: 9000 WRMS
- Max Power 14.4v @ 2 Ohms: 7400 WRMS
- Max Power 12.6v @ 1 Ohm: 8000 WRMS
- Max Power 12.6v @ 2 Ohms: 5100 WRMS
- Efficiency @ 2 Ohms: 83%
- Efficiency @ 1 Ohm: 77%
- Input Voltage: 9 - 15V
- Input Impedance: 100K Ohms
- Maximum Power THD: <3%
- Input Sensitivity: 200mV to 8V
- Signal Noise Ratio: 80dBs
- Frequency Response: 16 to 500Hz (-3dBs)
- HPF (Subsonic): 16 - 120Hz @ 12dB/octave Linkwitz-Riley
- LPF (Crossover): 50 - 500Hz @ 12dB/octave Linkwitz-Riley
- Variable Bass Boost: 30 - 80hz at up to 12dB
- Recommended Fuse: 2 x 225A
- Standby Current: ~3A
- Maximum current (musical signal): 400A
- Maximum current (sinusoidal signal): 850A
- Power Cables (recommended min.): 70mm / 0 AWG
- Output Cables (recommended min.): 2 x 6mm / 2 x 3 AWG
- Weight (Kg): 6.3
- Height (mm): 73
- Width (mm): 256
- Depth (mm): 317
The ELECTRA line was developed especially for those looking for incomparable bass. It has a frequency response of 16 to 500Hz. Because of this, ELECTRA will only play Subwoofers, Bass. The variable BASS BOOST feature 30 - 80hz at up to 12dB is a differentiator, further reinforcing the bass of your system.
Designed in a bold 100% aluminum chassis, it works with 8000 WRMS power with 1 input channel for connection and 1 Ohm impedance. It has very low harmonic distortion and clipping indicator, forced ventilation and protection against short circuit.
TECHNICAL SPECIFICATIONS
- Max Power 14.4v @ 1 Ohm: 9000 WRMS
- Max Power 14.4v @ 2 Ohms: 7400 WRMS
- Max Power 12.6v @ 1 Ohm: 8000 WRMS
- Max Power 12.6v @ 2 Ohms: 5100 WRMS
- Efficiency @ 2 Ohms: 83%
- Efficiency @ 1 Ohm: 77%
- Input Voltage: 9 - 15V
- Input Impedance: 100K Ohms
- Maximum Power THD: <3%
- Input Sensitivity: 200mV to 8V
- Signal Noise Ratio: 80dBs
- Frequency Response: 16 to 500Hz (-3dBs)
- HPF (Subsonic): 16 - 120Hz @ 12dB/octave Linkwitz-Riley
- LPF (Crossover): 50 - 500Hz @ 12dB/octave Linkwitz-Riley
- Variable Bass Boost: 30 - 80hz at up to 12dB
- Recommended Fuse: 2 x 225A
- Standby Current: ~3A
- Maximum current (musical signal): 400A
- Maximum current (sinusoidal signal): 850A
- Power Cables (recommended min.): 70mm / 0 AWG
- Output Cables (recommended min.): 2 x 6mm / 2 x 3 AWG
- Weight (Kg): 6.3
- Height (mm): 73
- Width (mm): 256
- Depth (mm): 317
