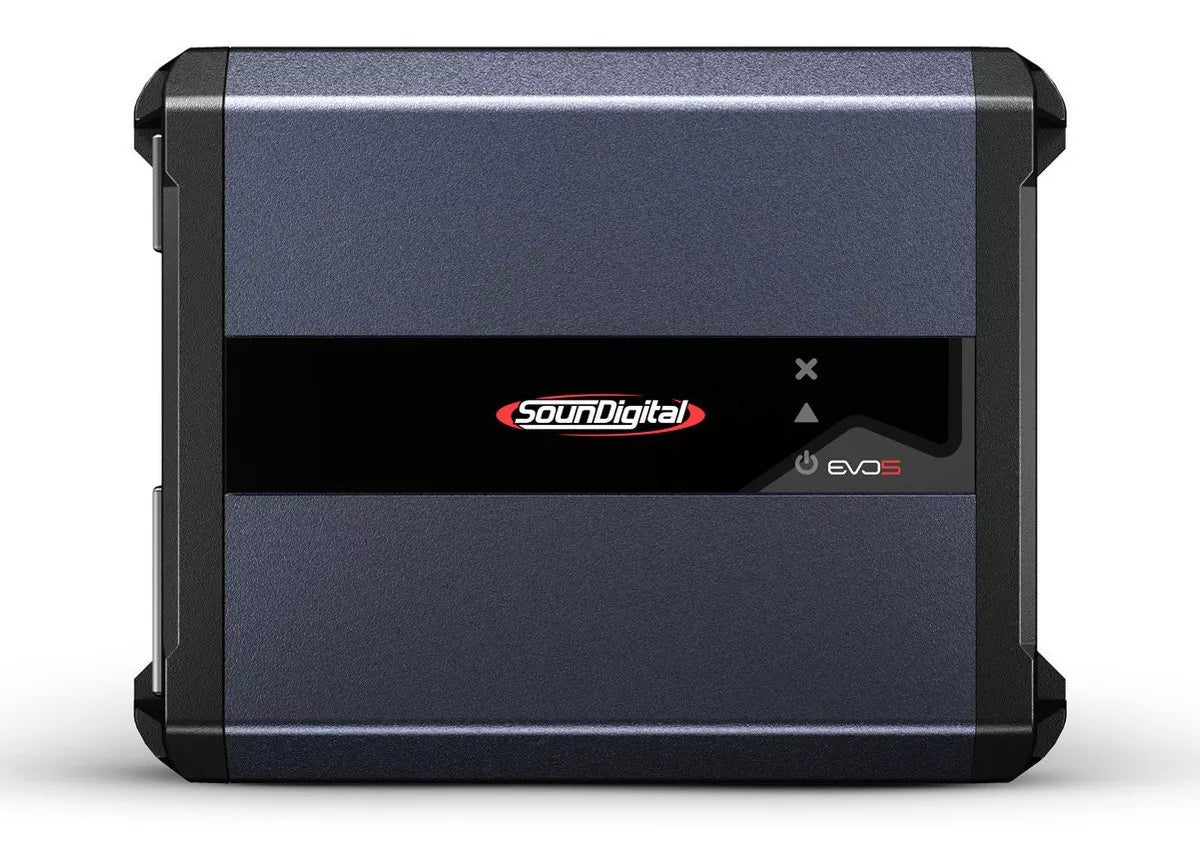

Soundigital Amplifier sd1600.1 evo 5.0 1ohm

DETAILS

The 1600.4 EVO 5.0 amplifier comes with exclusive patented * DTR technology.
The DTR * is a dynamic thermal recovery system that makes the amplifier always maintain high efficiency by accelerating the thermal exchange of electronic components with the heatsink.
Do you know what that means? An even more reliable and resistant product for you!
* Globally patented technology required by SounDigitalnd is not responsible for the misuse of the product.

TECHNICAL SPECIFICATIONS
1600.1 EVO 5.0 1Ω
Power @ 12.6V @ 1Ω: 1 x 1600 W RMS
Power @ 12.6V @ 2Ω: 1 x 880 W RMS
Power @ 12.6V @ 4Ω: 1 x 484 W RMS
Power @ 14.4V @ 1Ω : 1 x 2090 W RMS
Power @ 14.4V @ 2Ω: 1 x 1149 W RMS
Power @ 14.4V @ 4Ω: 1 x 632 W RMS
Frequency Response: 5Hz ~ 20kHz
Crossover: LP 50Hz ~ 500Hz / HP 5Hz ~ 80Hz 12dB / 8th
Damping Factor:> 1000
Maximum Consumption: 174A
Dimensions (LxWxH): 23.6 X 18.1 X 5.7 CM
Weight: 1.6 kg

1600.1 EVO 5.0 2Ω
Power @ 12.6V @ 1Ω: N / A
Power @ 12.6V @ 2Ω: 1 x 1600 W RMS
Power @ 12.6V @ 4Ω: 1 x 880 W RMS
Power @ 14.4V @ 1Ω: N / A
Power @ 14.4V @ 2Ω: 1 x 2090 W RMS
Power @ 14.4V @ 4Ω: 1 x 1149 W RMS
Frequency Response: 5Hz ~ 20kHz
Crossover: LP 50Hz ~ 500Hz / HP 5Hz ~ 80Hz 12dB / 8th
Factor Damping:> 1000
Maximum Consumption: 174A
Dimensions (LxWxH): 23.6 X 18.1 X 5.7 CM
Weight: 1.6 kg

1600.1 EVO 5.0 4Ω
Power @ 12.6V @ 1Ω: N / A
Power @ 12.6V @ 2Ω: N / A
Power @ 12.6V @ 4Ω: 1 x 1600 W RMS
Power @ 14.4V @ 1Ω: N / A
Power @ 14.4V @ 2Ω: N / A
Power @ 14.4V @ 4Ω: 1 x 2090 W RMS
Frequency Response: 5Hz ~ 20kHz
Crossover: LP 50Hz ~ 500Hz / HP 5Hz ~ 80Hz 12dB / 8th
Damping Factor:> 1000
Maximum Consumption: 174A
Dimensions (LxWxH): 23.6 X 18.1 X 5.7 CM
Weight: 1.6kg

Package Contents:
• 01 Amplifier Module 1600.1 EVO 5.0
• Manual and Warranty Certificate
