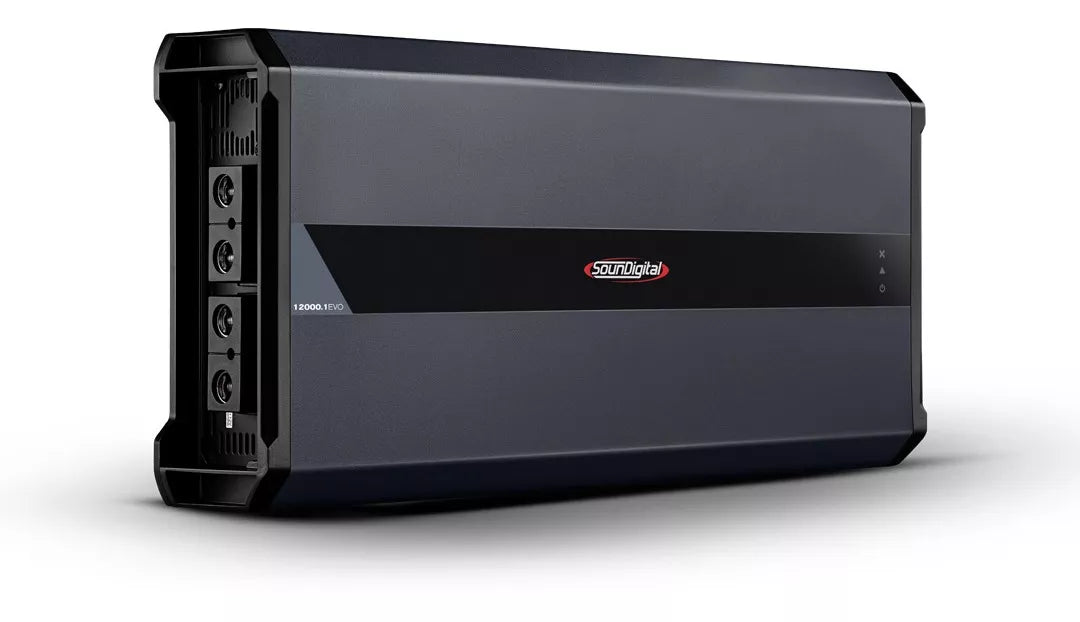

Soundigital Amplifier sd12000.1 evo 4.0

DETAILS
Our new 12000.1 EVO 4.0 features a symmetrical dual power connector.
This novelty ensures a more efficient supply of the amplifier, with the entry of more cables and internally ensures greater symmetry in the circuits.
With tracks of exactly the same length and thickness on both sides of the amplifier, we have greater energy efficiency and a substantial improvement in the bass and sub-bass response of the system.

TECHNICAL SPECIFICATIONS

12000.1 EVO 4.0 1Ω
Power @ 12.6V @ 1Ω: 1 x 12000 W RMS
Power @ 12.6V @ 2Ω: 1 x 7920 W RMS
Power @ 12.6V @ 4Ω: 1 x 5227 W RMS
Power @ 14.4V @ 1Ω: 1 x 13380 W RMS
Power @ 14.4V @ 2Ω: 1 x 8831 W RMS
Power @ 14.4V @ 4Ω: 1 x 5828 W RMS
Frequency Response: 5Hz - 6kHz
Crossover: LP 50Hz ~ 6kHz / HP 5Hz ~ 80Hz 12dB / 8th
Damping Factor:> 200
Maximum Consumption: 1287A
Dimensions (LxWxH): 53.0 X 22.5 X 7.1 CM
Weight: 7kg


12000.1 EVO 4.0 2Ω
Power @ 12.6V @ 1Ω: N / A
Power @ 12.6V @ 2Ω: 1 x 12000 W RMS
Power @ 12.6V @ 4Ω: 1 x 7920 W RMS
Power @ 14.4V @ 1Ω: N / A
Power @ 14.4V @ 2Ω: 1 x 13380 W RMS
Power @ 14.4V @ 4Ω: 1 x 8831 W RMS
Frequency Response: 5Hz - 6kHz
Crossover: LP 50Hz ~ 6kHz / HP 5Hz ~ 80Hz 12dB / 8th
Damping Factor:> 200
Maximum Consumption: 1287A
Dimensions (LxWxH): 53.0 X 22.5 X 7.1 CM
Weight: 7kg

Package Contents:
• 01 Amplifier Module 12000.1 EVO 4.0
• Manual and Warranty Certificate

Important:
• 1 Year Warranty.
• Unit Value.
• All of our products are new, original and follow the invoice.
• recommends that the installation be done by a specialized professional and is not responsible for the misuse of the product.
