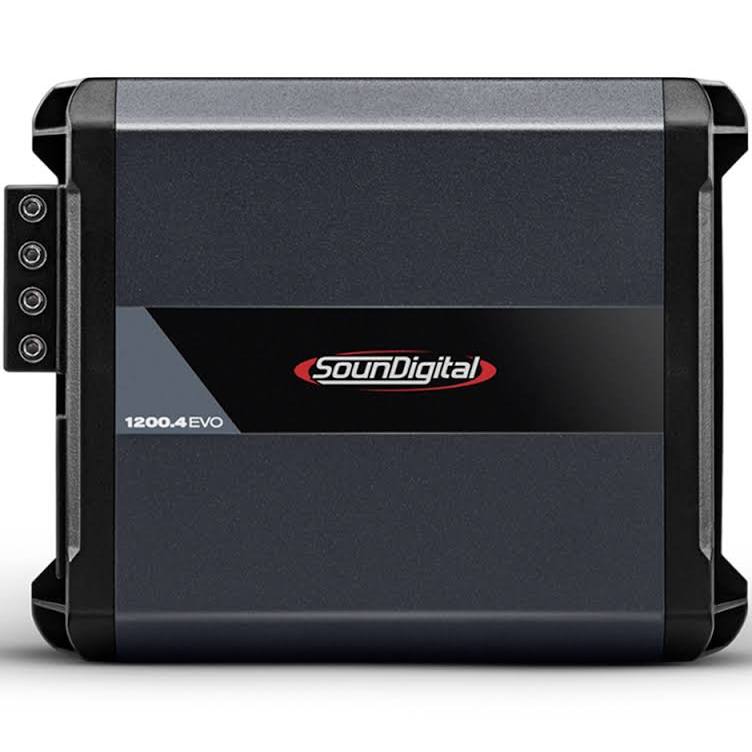

Soundigital Amplifier sd1200.4 evo 5.0 4ohm

DETAILS

TECHNICAL SPECIFICATIONS
1200.4 EVO 5.0 4Ω
Power @ 12.6V @ 1Ω: 4 x 300W RMS
Power @ 12.6V @ 2Ω: 4 x 198 W RMS
Power @ 12.6V @ 4Ω: 4 x 130 W RMS
Power @ 14.4V @ 2Ω: 4 x 221 W RMS
Power @ 14.4V @ 4Ω: 4 x 145 W RMS
Bridge Power @ 12.6V @ 2Ω: 2 x 600 W RMS
Bridge Power @ 12.6V @ 4Ω: 2 x 396 W RMS
THD + N - (10% of rated power): 0.1%
THD + N - (100% of rated power): 1%
Frequency Response: 5Hz ~ 22kHz
Crossover: LP / HP: 80Hz 12dB / 8th
Damping Factor: 200
Maximum Consumption: 116A
Dimensions (LxWxH): 17.0 X 13.6 X 5.5 CM
Weight: 1.12kg

1200.4 EVO 5.0 4Ω
Power @ 12.6V @ 1Ω: N / A
Power @ 12.6V @ 2Ω: 4 x 300 W RMS
Power @ 12.6V @ 4Ω: 4 x 198 W RMS
Power @ 14.4V @ 1Ω: N / A
Power @ 14.4V @ 2Ω: 4 x 335 W RMS
Power @ 14.4V @ 4Ω: 4 x 221 W RMS
Bridge Power @ 12.6V @ 2Ω: N / A
Bridge Power @ 12.6V @ 4Ω : 2 x 600 W RMS
THD + N - (10% of rated power): 0.1%
THD + N - (100% of rated power): 1%
Frequency Response: 5Hz ~ 22kHz
Crossover: LP / HP: 80Hz 12dB / 8th
Damping Factor: 200
Maximum Consumption: 116A
Dimensions (LxWxH): 17.0 X 13.6 X 5.5 CM
Weight: 1.12kg

Package Contents:
• 01 Amplifier Module 1200.4 EVO 5.0
• Manual and Warranty Certificate
